1 Plot your data in R

1.1 Why do we make plots?

Data visualization is a very important part of a data analysis because they can efficiently summarize large amounts of data in a graphical format and reveal new insights that are difficult to understand from the raw data. From a researcher’s or data analyst’s perspective, plotting datasets also helps you become familiar with the data and plan next steps in your analysis. It also allows you to identify statistical pitfalls with an initial plot.

Anscombe’s quartet. Each of the four datasets consists of 11 data points (orange points) and have nearly identical statistical properties, including means, sample variances, Pearson’s sample correlation (r), and linear regression line (blue lines). Modified from Anscombe FJ. Graphs in statistical analysis. Am Stat 1973;27:17–21

The above Figure is a well-known quartet highlights the importance of graphing data prior to analysis, and why statistical reviewers often ask for such graphs to be made available. As you can see the Pearson r2 is very similar, but the data are actually very different. Check out also the Dinosaurus example in the reference 2 below.

1.2 Which plot should I do with my data?

There are many different types of graphs, each with their own strengths and use cases. One of the trickiest parts of the analysis process is choosing the right way to represent your data with one of these visualizations. The wrong chart can lead to confusion or misinterpretation of the data (see some examples of bad charts here).

From a classical data analysis perspective, the first consideration in choosing the right plot is the nature of your variables. Some charts are recommended for numerical data (quantitative variables) and others for categorical data (qualitative variables). Then you should consider what role you want your data visualization to play, i.e., what question you want to answer or what message you want to convey. This depends on the number of variables as well as their distribution, grouping or correlation. There are some best practice guidelines, but ultimately you need to consider what is best for your data. What do you want to show? What chart best conveys your message? Is it a comparison between groups? Is it a frequency distribution of 1 variable?

The ExtremePresentation method for choosing a plot or chart.

For a guidance, you can use the Chartchooser above, by Andrew Abela, or the interactive website Visual Vocabulary here. Also, I strongly recommend you to check the FriendsDontLetFriends repo with examples of very common mistakes when plotting data in biology.

You can see a description of some of the most common plot types, with many examples on books and dedicated R websites. I suggest to take a look to some of the suggested References below, or some quick examples, like those here or here. Rather than going through a wide list of plots, we are going to use some examples to learn some basic plotting and see the effect of plot selection in order to understand your data and use them to answer questions.

1.3 Quick Plotting in R

R has a number of built-in tools for diverse graph types such as histograms, scatterplots, stripcharts, bar charts, boxplots, and more. Indeed, there are many functions in R to produce plots ranging from the very basic to the highly complex. We will show a few examples and use the plots as an excuse to add some new tricks for data analysis.

You will see below that ggplot2 and other packages provide efficient and advanced beautiful plot generation and customization. However, it’s sometimes useful to use the plotting functions in base R. These are installed by default with R and do not require any additional packages to be installed. They’re quick to type, straightforward to use in simple cases, and run very quickly. Then, if you want to do anything beyond very simple plots, though, it’s generally better to switch to ggplot2. In fact, once you already know how to use R’s base graphics, having these examples side by side will help you transition to using ggplot2 for when you want to make more sophisticated graphics.

Important

The function plot() is actually multifunctional and it can be used to generate different types of plots.

In the table and the examples below you can see how to use plot() for different plot types.

Use of plot() function. Source: https://r-coder.com/plot-r/

For the following examples, we are going to review also some R functions to make up (mock or simulated) data restricted to certain distributions. For instance, using functions like rnorm() or dnorm() for generation of normal data or normal density curves. The same can be obtained for Poisson distribution with dpois() and rpois().

# generate some sample data with normal distribution
x <- rnorm(500)
y <- x + rnorm(500)
plot(x)

hist(x, col = "blue")

plot(x, y)

plot(dnorm(0:100, mean = 50, sd = 5))

We can also change some of the plot parameters to change the plot appearance.

#customized Example
plot(x, y, pch = 21,
    bg = rgb(1,0,0,0.5), # Fill color
    col = "red", # Border color
    cex = 3,      # Symbol size
    lwd = 3)      # Border width

Note that colors can be specified as a name or code (RGB or HEX). In the case of RGB code, we provide the three values in the range [0,1] for red, green, and blue. We can also introduce an optional fourth value that correspond to the alpha, also from 0 (transparent) to 1 (opaque). See below for more details about changing points and line shape and colors.

1.4 Quick exercise (I)

We have a vector in a RData file called primes.RData that we would like to plot.

Cross-lesson tip

If you have not worked with the R3 lesson yet, you can take a quick look at how we can save and load objects into a RData file.

How would you load the vector?

Now we want to plot the vector. You may try different plots, but think which plot help you to answer the following question

How would you check the distribution of the data? In other words, how would you check if are there many values below or above the median?

Yes, a boxplot is the best choice here.

load("data/primes.RData")
boxplot(new_vec)

Here’s how to interpret this boxplot:

  • The bottom whisker displays the minimum value (excluding outliers).
  • The bottom line of the box displays the first quartile value.
  • The black bar in the middle of the box displays the second quartile value (also known as the median).
  • The top line of the box displays the third quartile value.
  • The top whisker displays the maximum value (excluding outliers).
  • Outliers are defined as points exceeding 1.5 times the interquartile range (Q3-Q1).

We can also easily calculate the quartiles of a given dataset in R by using the quantile() function.

load("data/primes.RData")
quantile(new_vec)
   0%   25%   50%   75%  100%
  1.0  35.5  86.0 149.5 337.0

Compare the output with the boxplot and interpret the numbers.

1.5 Plot your data and save the plot

As an example, we are going to read again the file coli_genomes_renamed.csv that we used in the previous lessons.

Cross-lesson tip

If you have not worked with the R3 lesson yet, you can take a quick look at how we can open and save a table in R.

Now let’s play with different plots of our data and try to save one.

# open the data
coli_genomes <- read.csv(file = "data/coli_genomes_renamed.csv",
    strip.white = TRUE, stringsAsFactors = TRUE)
# attach it to save time and code writing (optional!)
attach(coli_genomes)
# one variable
plot(Year)

# histogram
hist(Year)

# a factor
plot(Source)

# two variables
plot(Contigs, kmer)

# factor + numeric variable and saving the plot
png(file = "plot1.png")  #give it a file name
plot(Source, Contigs)  #construct the plot
dev.off()  #save
quartz_off_screen
                2
detach(coli_genomes)  #detach

As shown in the example, in order to save a plot, we must follow three steps:

  1. Open the file indicating the format: png(), jpg(), svg(), postscript(), bmp(), win.metafile(), or pdf().

  2. Plot the data.

  3. Close the file: dev.off().

Alternatively, you can save the plot using the Plot menu or the Plots panel: Export –> Save as Image or Save as PDF.

2 Create complex plots in base R

2.1 Add more elements

As you may know, the R function cor() calculate the correlation coefficient between two or more vectors and cor.test() allow us to quickly perform a correlation test between two variables to know if the correlation is statistically significant. However, a quick plot can be also very useful.

In our example dataframe, we have some features of a list of E. coli isolates and the basic stats of the genome sequencing. Regarding this data, do you think that the number of contigs > 1kb in the genome assemblies (contigs1kb) correlates with the total number of contigs (Contigs), or the average contig length (average_contig)? Let’s check the data using simple plots with the plot() function. Since we are going to make two plots, we will layout them together using a par option.

Plot parameters set up with par

Note that par can be used to set many graphical parameters. These options are stored in a list R object, that you can get using par() (with no arguments).

# first we can save original settings (optional)
oldpar <- par()
par(mfrow = c(1, 2))  #graph area in two columns

# correlation plots
plot(coli_genomes$contigs1kb ~ coli_genomes$Contigs, xlab = "Contigs",
    ylab = "Contigs > 1kb")

plot(coli_genomes$contigs1kb ~ coli_genomes$average_contig, xlab = "Average contig",
    ylab = "Contigs > 1kb")

What do you think? Now that we have seen the linear relationship pictorially in the scatter plot, we should plot the linear regression line and analyze the correlation.

REMINDER - Linear model and correlation in R

Linear regression analysis is used to predict the value of a variable based on the value of another variable. In R, you can calculate the linear regression equation with the function lm(). The lm() function takes in two main arguments, (1) Formula and (2) Data. The data is typically a data.frame and the formula is a object of class formula (with a diacritical mark like that over the Spanish letter ñ, ~). But the most common convention is to write out the formula directly in place of the argument as written below.

Then, to fully check the correlation (and avoid situations like in the Anscombe’s quartet above, you must also remember that correlation coefficient can be calculated with the function cor().

Let’s obtain and plot the linear model:

# linear model
modelito <- lm(coli_genomes$contigs1kb ~ coli_genomes$Contigs)
summary(modelito)  #is the linear model significant???

Call:
lm(formula = coli_genomes$contigs1kb ~ coli_genomes$Contigs)

Residuals:
    Min      1Q  Median      3Q     Max
-53.475  -8.646  -3.300  14.840  55.947

Coefficients:
                     Estimate Std. Error t value Pr(>|t|)
(Intercept)          -6.36290   12.90558  -0.493    0.627
coli_genomes$Contigs  0.50755    0.06634   7.651 2.31e-07 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 22.55 on 20 degrees of freedom
Multiple R-squared:  0.7453,    Adjusted R-squared:  0.7326
F-statistic: 58.54 on 1 and 20 DF,  p-value: 2.306e-07
Tip

Remember that the results of lm(), cor.test(), and all other tests, are R objects (usually lists) than can be used to retrieve the results or plot the values.

# set par (we need to set up the par in every code chunk)
par(mfrow = c(1, 2))
# correlation plots with line
plot(coli_genomes$contigs1kb ~ coli_genomes$Contigs, xlab = "Contigs",
    ylab = "Contigs > 1kb")
abline(modelito, col = "red")
# we can include the lm() in the plot, without calculating
# it before
plot(coli_genomes$contigs1kb ~ coli_genomes$average_contig, xlab = "Average contig",
    ylab = "Contigs > 1kb")
abline(lm(coli_genomes$contigs1kb ~ coli_genomes$average_contig),
    col = "red")

# now we will check with a cor.test and add some text to
# the plot
(test1 <- cor.test(coli_genomes$contigs1kb, coli_genomes$Contigs))

    Pearson's product-moment correlation

data:  coli_genomes$contigs1kb and coli_genomes$Contigs
t = 7.651, df = 20, p-value = 2.306e-07
alternative hypothesis: true correlation is not equal to 0
95 percent confidence interval:
 0.6945248 0.9420476
sample estimates:
     cor
0.863334
(test2 <- cor.test(coli_genomes$contigs1kb, coli_genomes$average_contig))

    Pearson's product-moment correlation

data:  coli_genomes$contigs1kb and coli_genomes$average_contig
t = -7.8453, df = 20, p-value = 1.574e-07
alternative hypothesis: true correlation is not equal to 0
95 percent confidence interval:
 -0.9444427 -0.7055990
sample estimates:
       cor
-0.8687624
str(test1)
List of 9
 $ statistic  : Named num 7.65
  ..- attr(*, "names")= chr "t"
 $ parameter  : Named int 20
  ..- attr(*, "names")= chr "df"
 $ p.value    : num 2.31e-07
 $ estimate   : Named num 0.863
  ..- attr(*, "names")= chr "cor"
 $ null.value : Named num 0
  ..- attr(*, "names")= chr "correlation"
 $ alternative: chr "two.sided"
 $ method     : chr "Pearson's product-moment correlation"
 $ data.name  : chr "coli_genomes$contigs1kb and coli_genomes$Contigs"
 $ conf.int   : num [1:2] 0.695 0.942
  ..- attr(*, "conf.level")= num 0.95
 - attr(*, "class")= chr "htest"
plot(coli_genomes$contigs1kb ~ coli_genomes$Contigs, xlab = "Contigs",
    ylab = "Contigs > 1kb")
abline(lm(coli_genomes$contigs1kb ~ coli_genomes$Contigs), col = "red")
# now add the text in a defined position
text(200, 200, paste("Pearson r2=", round(test1$estimate, 2)))

plot(coli_genomes$contigs1kb ~ coli_genomes$average_contig, xlab = "Average contig",
    ylab = "Contigs > 1kb")
abline(lm(coli_genomes$contigs1kb ~ coli_genomes$average_contig),
    col = "red")
text(40000, 200, paste("Pearson r2=", round(test2$estimate, 2)))

In a step further you can check multiple correlations in a single plot.

# oh wait! why only one-vs-one?
plot(coli_genomes[, c("VF", "Plasmids", "kmer", "Contigs", "N50",
    "longest.contig..bp.", "Assembly_length", "contigs1kb", "average_contig")],
    main = "Multiple Correlation plot")

Now, you have a quick info about possible variable correlations.

2.2 Quick exercise (II)

For this exercise we are going to use a dataset called zebrafish_data.csv. This file contains the results of an experiment in which a collaborator scored the number of metastatic cancer cells upon the expression of different transcripts of the EFNA3 gene. Each transcript is cloned into a pLoC plasmid, and we have negative (empty plasmid) and positive controls (wt EFNA3 transcript), as well as four transcript mutants. Let’s import and check the data.

# read data
ZFdata <- read.csv("data/Zebrafish_data.csv")
str(ZFdata)
'data.frame':   41 obs. of  6 variables:
 $ pLoC : int  36 32 10 26 15 23 17 14 44 12 ...
 $ EFNA3: int  35 33 17 25 89 36 40 36 35 37 ...
 $ NC1  : int  58 26 26 18 20 24 10 31 28 26 ...
 $ NC1s : int  11 11 19 12 12 20 7 104 116 11 ...
 $ NC2  : int  53 37 56 48 27 29 22 79 22 18 ...
 $ NC2s : int  40 43 19 18 33 29 29 25 28 47 ...
How would you construct barplots of the data from the six experimental conditions?

Let’s see some examples:

# some plots
barplot(ZFdata)
Error in barplot.default(ZFdata): 'height' must be a vector or a matrix
barplot(ZFdata$pLoC)

par(mfrow = c(1, 3))  #arrange the three plots in a row
# we include a plot title with 'main'
barplot(ZFdata$pLoC, col = "red", main = "pLoc")
barplot(ZFdata$EFNA3, col = "green", main = "EFNA3")
barplot(ZFdata$NC1s, col = "blue", main = "NC1s")

par(mfrow = c(2, 3))  #arrange the six plots in two rows
# note the 'method' option
stripchart(ZFdata$pLoC, main = "pLoc")
stripchart(ZFdata$pLoC, method = "stack", col = "red", main = "pLoc")
stripchart(ZFdata$pLoC, method = "overplot", col = "red", main = "pLoc")
stripchart(ZFdata$pLoC, method = "jitter", col = "red", main = "pLoc")
stripchart(ZFdata$EFNA3, method = "stack", col = "green", main = "EFNA3")
stripchart(ZFdata$NC1s, method = "stack", col = "blue", main = "N1cs")

# now histograms
par(mfrow = c(1, 3))  #arrange the three plots in a row
hist(ZFdata$pLoC, col = "red", main = "pLoc")
hist(ZFdata$EFNA3, col = "green", main = "EFNA3")
hist(ZFdata$NC1s, col = "blue", main = "N1cs")

Now try to answer some questions about your data and obtained plots:

1. Which construct has the strongest impact on the dissemination of metastatic cells?
2. Which plot represent best these data?
3. Does a boxplot represent the same information than a histogram?
4. Does a barplot represent the same information than a boxplot?

Now, we are going to represent the same data again, introducing some more customization

Can you reproduce the above plots?

# new par settings
par(mfrow = c(1, 3), cex.lab = 1, cex = 1, lwd = 2)
# plotting
hist(ZFdata$pLoC, col = rgb(1, 0, 0, 0.5), main = "pLoc", ylim = c(0,
    20), xlim = c(0, 120), xlab = "Number of Metastatic cells")
hist(ZFdata$EFNA3, col = rgb(0, 1, 0, 0.5), main = "EFNA3", ylim = c(0,
    20), xlim = c(0, 120), xlab = "Number of Metastatic cells")
hist(ZFdata$NC1s, col = rgb(0, 0, 1, 0.5), main = "NC1s", ylim = c(0,
    20), xlim = c(0, 120), xlab = "Number of Metastatic cells")

stripchart(ZFdata$pLoC, method = "jitter", pch = 19, col = rgb(1,
    0, 0, 0.5), vertical = TRUE, main = "pLoc", ylim = c(0, 120),
    xlab = "Number of Metastatic cells")
stripchart(ZFdata$EFNA3, method = "jitter", pch = 19, col = rgb(0,
    1, 0, 0.5), vertical = TRUE, main = "EFNA3", ylim = c(0,
    120), xlab = "Number of Metastatic cells")
stripchart(ZFdata$EFNA3, method = "jitter", pch = 19, col = rgb(0,
    1, 0, 0.5), vertical = TRUE, main = "EFNA3", ylim = c(0,
    120), xlab = "Number of Metastatic cells")

boxplot(ZFdata$pLoC, col = rgb(1, 0, 0, 0.5), ylim = c(0, 120),
    xlab = "Number of Metastatic cells", main = "pLoc")
boxplot(ZFdata$EFNA3, col = rgb(0, 1, 0, 0.5), ylim = c(0, 120),
    xlab = "Number of Metastatic cells", main = "EFNA3")
boxplot(ZFdata$NC1s, col = rgb(0, 0, 1, 0.5), ylim = c(0, 120),
    xlab = "Number of Metastatic cells", main = "N1cs")

Do you think, you can answer better the questions now?

Beyond some basic examples of plotting in R, the take-home message of this example is that the type of plot and the plot parameters (in this case the scale) can be essential for correct interpretation of the data and if they are not properly adjusted the plot can be strongly misleading.

The stripchart and the boxplot strongly suggest that NC2s is probably the strongest transcript, but that is not shown in the barplot. These plots clearly show that barplots are intended for single values (categorical data) and can mislead your conclusions.

2.3 Plot grouped data

We will still use the data from the zebrafish experiment here

In the previous plots, in order to compare three conditions, we needed to make three independent plots. However, in the table, there are six conditions, and it is not very difficult to imagine experiments that might result in a table with even more conditions. How could you plot that? The key question is, different conditions means different variables? In other words:

How many variables are there in the Zebrafish dataset?

In data analysis (check Lesson R6), particularly when you want to compare many variables in different groups, it is more handy to create a stacked table or datamatrix. Stacked table are also often referred to as narrow tables. In contrast, the tables with different conditions (of a same variable) in different columns are named wide table or unstacked. The code below shows how to stack and plot your data by groups using the function stack().

# Reshape the table for 1 column per variable with
# `stack()`

ZF_stacked <- stack(ZFdata)
# now check the result of stack
str(ZF_stacked)
'data.frame':   246 obs. of  2 variables:
 $ values: int  36 32 10 26 15 23 17 14 44 12 ...
 $ ind   : Factor w/ 6 levels "pLoC","EFNA3",..: 1 1 1 1 1 1 1 1 1 1 ...
head(ZF_stacked)
  values  ind
1     36 pLoC
2     32 pLoC
3     10 pLoC
4     26 pLoC
5     15 pLoC
6     23 pLoC
# you can also define a colors vector that can be reused
colorines = c(rgb(1, 0, 0, 0.5), rgb(0, 1, 0, 0.5), rgb(0, 0,
    1, 0.5), rgb(1, 0.5, 0, 0.5), rgb(0.5, 0.5, 0.5, 0.5), rgb(0,
    1, 1, 0.5))

# and build the plots
boxplot(ZF_stacked$values ~ ZF_stacked$ind, col = colorines)

stripchart(ZF_stacked$values ~ ZF_stacked$ind, vertical = TRUE,
    method = "jitter", col = colorines, pch = 19, cex = 1, ylab = "Number of cells",
    xlab = "Plasmid")

2.4 More plot customization

There are many options to customize your plots, including font type and size, point shape, line type… You can see more info on the References section below. Let’s see some examples using code I borrow from https://r-coder.com/plot-r/

# point shape with 'pch'
r <- c(sapply(seq(5, 25, 5), function(i) rep(i, 5)))
t <- rep(seq(25, 5, -5), 5)

plot(r, t, pch = 1:25, cex = 3, yaxt = "n", xaxt = "n", ann = FALSE,
    xlim = c(3, 27), lwd = 1:3)
text(r - 1.5, t, 1:25)

# line type with 'lty'
M <- matrix(1:36, ncol = 6)
# we use a `matplot` to plot a matrix.
matplot(M, type = c("l"), lty = 1:6, col = "black", lwd = 3)

# Just to indicate the line types in the plot
j <- 0
invisible(sapply(seq(4, 40, by = 6), function(i) {
    j <<- j + 1
    text(2, i, paste("lty =", j))
}))

# plot box
par(mfrow = c(2, 3))

# plots
plot(x, y, bty = "o", main = "Default")
plot(x, y, bty = "7", main = "bty = '7'")
plot(x, y, bty = "L", main = "bty = 'L'")
plot(x, y, bty = "U", main = "bty = 'U'")
plot(x, y, bty = "C", main = "bty = 'C'")
plot(x, y, bty = "n", main = "bty = 'n'")

par(mfrow = c(1, 1))

2.5 Quick exercise (III)

Can you reproduce the plots below?

# create the data
scores <- sample(0:100, 45, replace = TRUE)
height <- rnorm(45, 70, 2)
teams <- as.factor(rep(c(LETTERS[1:3]), times = 15))

# set up the par
par(mfrow = c(2, 2))
# plots
plot(scores, type = "line", lwd = 2, main = "Line Plot of Scores (Run Chart)",
    col = "blue", xlab = "Samples", ylab = "Scores")
Warning in plot.xy(xy, type, ...): plot type 'line' will be truncated to first
character
points(scores, col = "red", pch = 19)

hist(height, main = "Histogram of Heights", col = "aquamarine3",
    xlab = "Height")

plot(teams, scores, main = "Comparative Boxplots | Scores by Teams",
    col = "lightskyblue1", xlab = "Teams", ylab = "Scores")

plot(scores ~ height, main = "Scatter Diagram | Scores by Height",
    col = "brown3", xlab = "Height", ylab = "Scores", pch = 19,
    cex = 1.2)

2.6 Quick exercise (IV)

Now let’s think again in our E. coli genomes. How would you add more layers of information to the plot, like labels of specific points?

# point label, but only some 'selected' points

# step1: create a vector with the selection
selected <- c(7, 17, 18)
# step2: make a plot
plot(coli_genomes$contigs1kb ~ coli_genomes$Contigs, pch = 19,
    col = rgb(1, 0, 0, 0.5), xlab = "Contigs", ylab = "Contigs > 1kb")

# step 3: add the labels as a text layer note that you can
# use the formula for the text coordinates
text(coli_genomes$contigs1kb[selected] ~ coli_genomes$Contigs[selected],
    labels = coli_genomes$Strain[selected], cex = 0.6, pos = 4,
    col = "red")

You can look for more custom options because there are a lot. I also suggest looking at the function identify(), which allows the quick interactive identification and labeling of selected points.

Now, we repeat the scatterplot above of contigs1kb vs. Contigs, but instead of labels, coloring the points by Source as in the plot below. Finally, use the function legend() to add a legend.

# Think in a way to use the variable 'Source' and
# conditionally recode it as colors Then, a recursive way
# will help you to generate a vector to color all the
# elements in the plot
# recode the source as color step 1: define an empty vector
# (not required here, but better to do it)
colorines <- c()
# step 2: use a loop to run over all the source vector
for (i in 1:nrow(coli_genomes)) {
    # step 3: use switch() to recode the sources as colors
    # note that Source is a factor but we need to treat it
    # as a character here
    colorines[i] <- switch(as.character(coli_genomes$Source[i]),
        Avian = rgb(1, 0, 0, 0.4), Human = rgb(0, 1, 0, 0.4),
        Porcine = rgb(0, 0, 1, 0.4))
}
# plot
plot(coli_genomes$contigs1kb ~ coli_genomes$Contigs, pch = 21,
    bg = colorines, xlab = "Contigs", ylab = "Contigs > 1kb")

# legend the function unique() is important here, can you
# figure out why?
legend(100, 200, legend = unique(coli_genomes$Source), fill = unique(colorines))

3 Review exercises 1: R base plots1

1. Let’s suppose we have the expression data for two genes (GeneA and GeneB) in 50 patients, 30 with colon cancer and 20 with lung cancer.

For the exercise, we are using random data, generated as follows:

(GeneA <- rnorm(50))
(GeneB <- c(rep(-1, 30), rep(2, 20)) + rnorm(50))
(tumor <- factor(c(rep("Colon", 30), rep("Lung", 20))))

a. Before plotting the data, how would you test if there is difference in the expression level by the type of tumor?

b. Plot boxplots and density curves of the expression of both genes by type of tumor. Do the plots agree with your answer to the question a?

Tips. Check out the functions density() and lines() in order to plot the density curves and polygon() if you want to have filled the area below the curves. Also, note that when plotting multiple lines, you must set the axis limits with the xlim and ylim arguments when plotting the first curve.

2. Protein amino acids composition.

The file aapc.csv is a plain text file that contains information amino acid composition in all the sequences deposited in the UniProtKB/Swiss-Prot protein data base. Use that file to reproduce the following barplot.

3. A classic in biochemistry lab: Protein quantification (with special thanks to Carmen Mayoral). You have probably done that with Excel or GraphPad, but after this exercise I’m sure you’ll consider a definitive upgrade in your protocols.

In our lab, we often purify recombinant DNA polymerases. We have recently purify a WT and mutant proteins, and we want to quantify the amount of pure proteins using a SDS-PAGE. To do so, we loaded decreasing volumes of the protein preparation (serial dilutions, but expresed as volume of the original sample in µL) along with known amounts (ng) of bovine seroalbumin (BSA) as a pattern, as in the image below. Bands were densitometer using ImageJ opensource software (arbitrary units). The data are in three tables containing the BSA pattern (triplicates in bsa_pattern.csv), the results for the wt protein (curve_wt.csv) and for the mutant (curve_mut.csv).

  1. Plot the correlation between BSA amounts and the bands density. Color the points by the replicate and include the linear model line, as well as the Pearson R2.

  2. Use the linear model to obtain the concentration (µM) of wt and mutant protein preparations. You can use the equation or check out the function predict() to directly interpolate the values. Consider the same molecular weight of 99 kDa for both proteins.

4 GGplotting: Advanced plots with ggplot2 library

Data visualization is one of the greatest advantage of R. One can quickly go from idea to data to graph with a unique balance of flexibility and ease.

There are many graphing options available in R. You already know that the graphing capabilities that come with a basic installation of R are already quite useful. There are also a number of packages for creating advances graphs like grid, plotly, or lattice. In this course we chose to use ggplot2 because it is widely used and also the basis of many derivative packages for specific advanced plots. The main advantage of ggplot is that it breaks plots into components in a way that allows beginners to create relatively complex and aesthetically pleasing plots using an intuitive and relatively easy-to-remember syntax. Moreover, although we are not working on it, it belongs to the set of libraries tidyverse and it is very well integrated with them.

From: https://ourcodingclub.github.io/tutorials/dataviz-beautification/

I must say that ggplot is generally less intuitive for beginners. However, once you get used to it, even if you have to look for help or examples to obtain your plots, you will find that it is amazingly powerful and allows you to create perfect plot, with a high level of detail. This is because it uses a “graphing grammar” (see Wilkinson et al.2000), the gg of ggplot2. This is similar to the way that learning a language grammar can help you construct hundreds of different sentences from a small number of verbs, nouns, and adjectives, rather than memorizing each sentence. Similarly, by learning a small amount of the basic components of ggplot2 and the elements of its grammar, you will be able to create hundreds of different plots to represent the data exactly as the way you think it’s the best way or even better. As with any language, the grammar of graphics can be flexible and we may omit some elements o add more elements of the same type, just like we can add diverse kinds of complements (place, time…) to a sentence.

From a general perspective (see ref. 3), plots are composed of the data, the information you want to visualize, and a mapping, the description of how the data’s variables are mapped to aesthetic attributes. There are five mapping components (again from ref. 3):

  • A layer is a collection of geometric elements and statistical transformations. Geometric elements, geoms for short, represent what you actually see in the plot: points, lines, polygons, maps, etc. Statistical transformations, stats for short, summarize the data: for example, binning and counting observations to create a histogram, or fitting a linear model.

  • Scales or aesthetic map is required to map values in the data space to values in the space. This includes the use of colour, shape or size. Scales also draw the legend and axes, which make it possible to read the original data values from the plot (an inverse mapping).

  • A coord, or coordinate system, describes how data coordinates are mapped to the plane of the graphic. It also provides axes and gridlines to help read the graph. We normally use the Cartesian coordinate system, but a number of others are available, including polar coordinates and map projections.

  • A facet specifies how (usually a factor type vector) to break up and display subsets of data as small multiples. This is also known as conditioning or latticing.

  • A theme controls the finer points of display, like the font size and background colour. While the defaults in ggplot2 have been chosen with care, you may need to consult other references to create an attractive plot.

Let’s see all those element through some examples.

4.1 Example 1: Advanced plotting with ggplot in one line

Let’s start strong. We are going to generate a complex plot in one code line using the EU Covid-19 vaccines table (already used in R6 lesson and publicly available at https://opendata.ecdc.europa.eu/covid19/vaccine_tracker/csv/data.csv).

Note

This is a quite large dataframe, if your plotting is too slow or crash your R session, you can randomly select some rows using the function sample()

Example: vaccines_short <- vaccines[sample(1:nrow(vaccines),100000),]

# load the data

library(data.table)
vaccines <- fread("data/vaccines_EU_22oct2022.csv")
# install & load ggplot2
if (!require(ggplot2)) install.packages("ggplot2", dependencies = TRUE)
Loading required package: ggplot2
library(ggplot2)

# step 1: create the plot object
ggplot(data = vaccines)

There are some alternative ways to create the plot than are useful for more complex plots. You can also create an object in the RStudio environment.

p <- ggplot(data = vaccines)
class(p)
[1] "gg"     "ggplot"

Also, you will see on many websites the use of the pipe (|> or %>% with dplyr()) as the first argument. This is very convenient to combine ggplot with other tidyverse packages, although we are not using that syntax in the following examples.

p <- vaccines |>
    ggplot()

Now, we can add some data to generate a dot plot:

(p <- ggplot(vaccines, aes(x = YearWeekISO, y = log10(FirstDose),
    col = TargetGroup)))

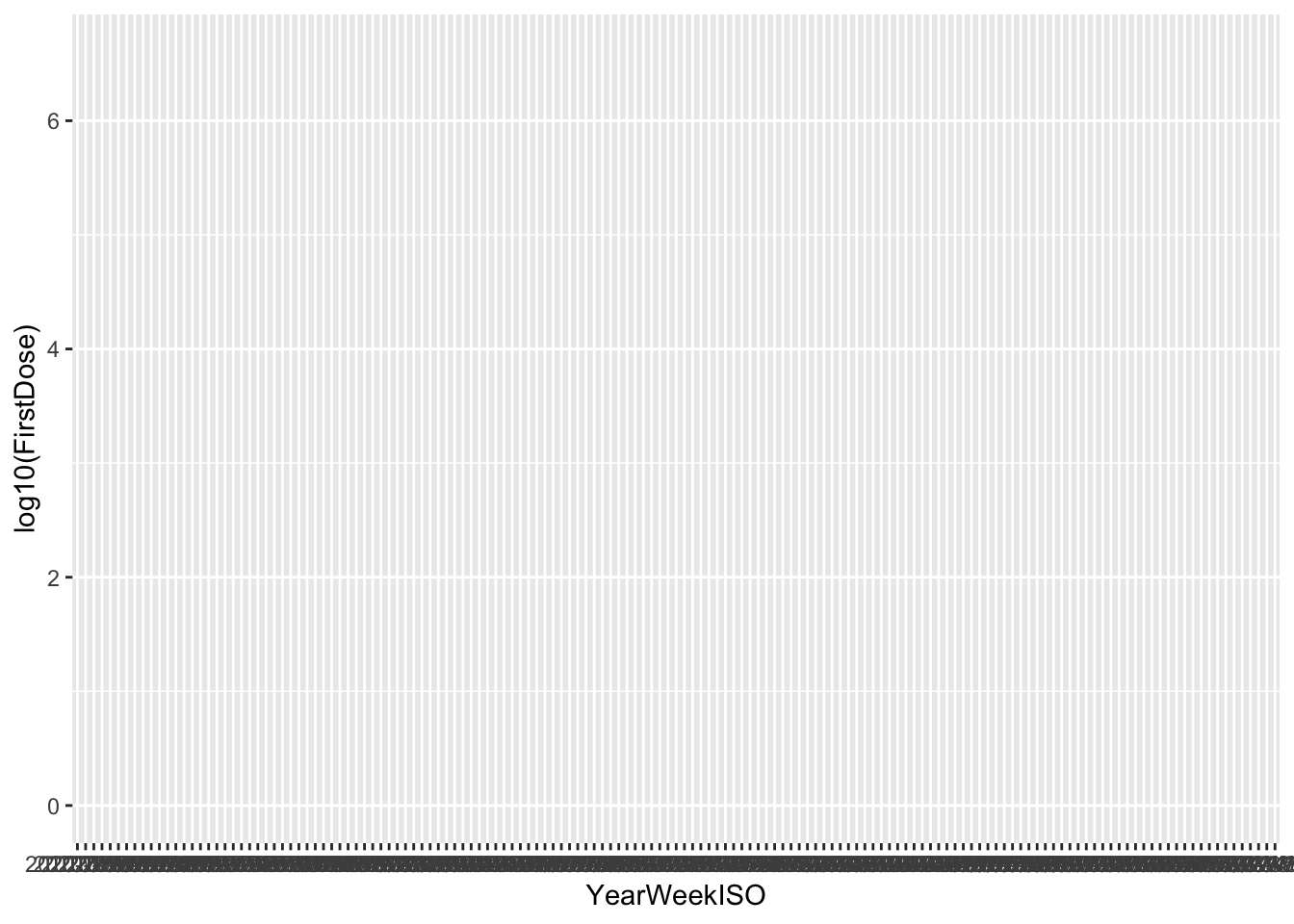

What happened? Where are my points? We added the data and it allows to plot the axis, but we also need to add the type of plot, that is, the geometry layer. We usually build the final plot adding (just with +) more layers to the previous plot object.

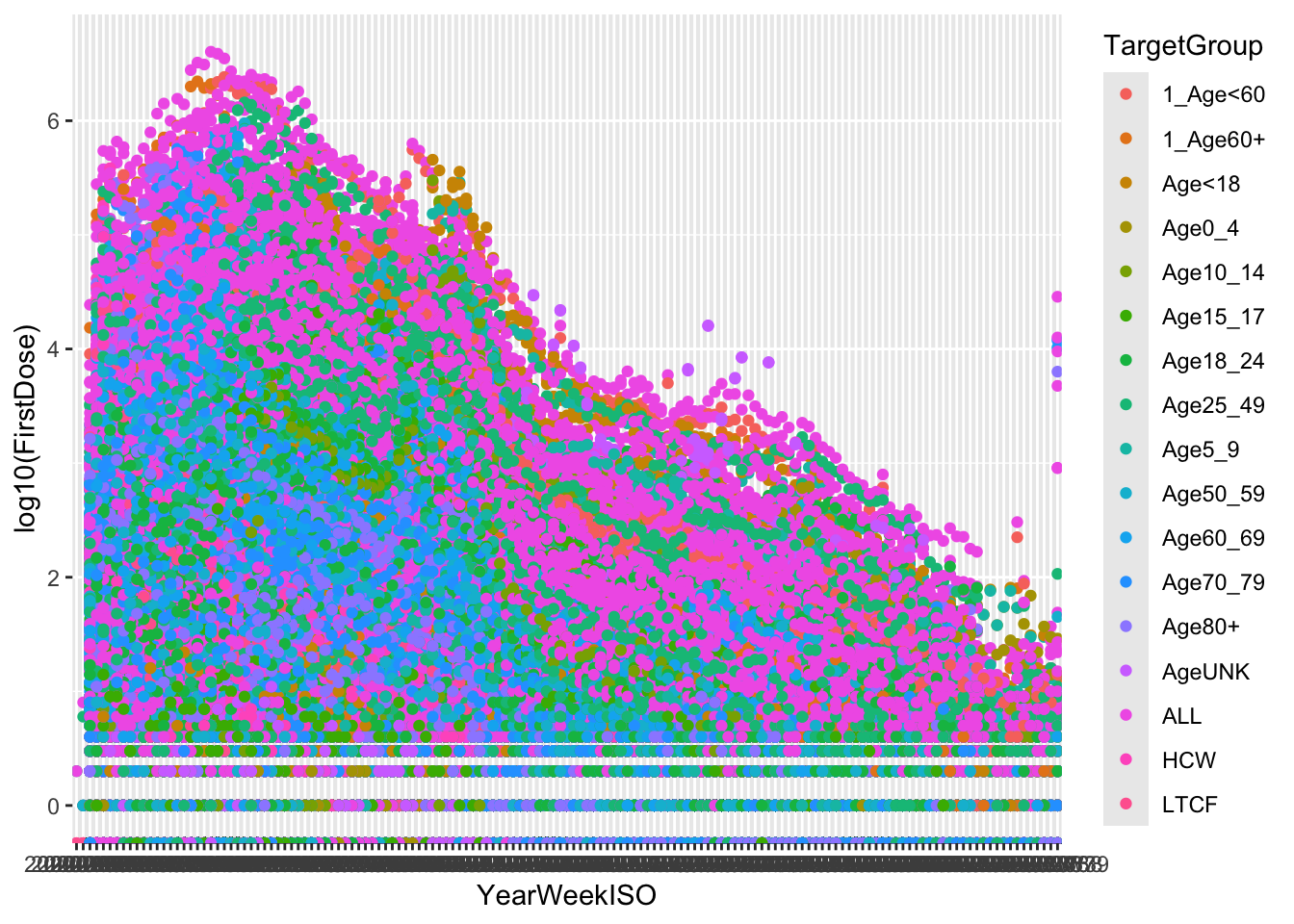

(p <- p + geom_point())

Finally, we would like to group our data:

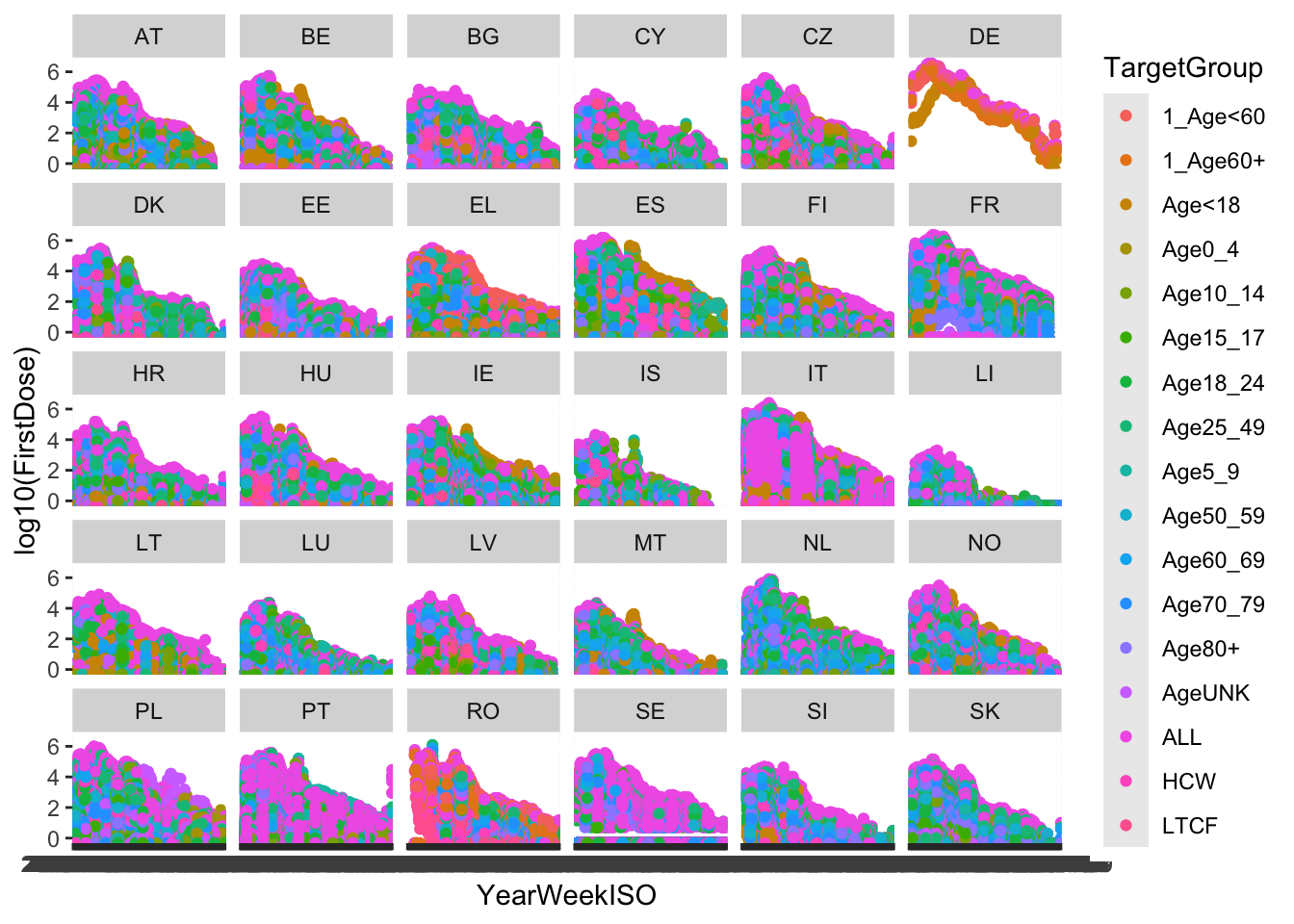

ggplot(vaccines, aes(x = YearWeekISO, y = log10(FirstDose), col = TargetGroup)) +
    geom_point() + facet_wrap(~ReportingCountry)

That is, quite a complex plot in just one code line.

5 Diversity of plots with ggplot

5.1 Example 2: From R base plot to personalized ggplot

The use of ggplot is usually associate to great, gorgeous charts and plots. However, once you learn how to use it and how adapt and re-adapt code to your data, you will probably use ggplot for every graph.

In the following code, we are going to use ggplot to solve the exercise 1 from Lesson R5.

# create the same dataset
set.seed(2023)  #set a seed to obtain reproducible random data
(GeneA <- rnorm(50))
 [1] -0.08378436 -0.98294375 -1.87506732 -0.18614466 -0.63348570  1.09079746
 [7] -0.91372727  1.00163971 -0.39926660 -0.46812305  0.32696208 -0.41274690
[13]  0.56203647  0.66335826 -0.60289728  0.69837769  0.59584645  0.45209183
[19]  0.89674396  0.57221651 -0.41165301 -0.29432715  1.21857396  0.24411143
[25] -0.44515196 -1.84780364 -0.62882531 -0.86108069  1.51492030  2.73523893
[31] -0.27487706  1.27665407 -0.81098034 -0.04492278 -0.63941238 -0.43835600
[37]  0.50720220  1.12921920  0.97563765 -0.12460379  0.42833658  0.41872636
[43]  0.43546649 -0.20426209  0.30235349  0.69435780  2.37306566  1.07597029
[49]  0.33538478  0.75342823
(GeneB <- c(rep(-1, 30), rep(2, 20)) + rnorm(50))
 [1] -0.33561372 -2.09088266 -1.42277085  0.18340204  0.58482679  1.28085537
 [7] -3.06545705 -1.40811197 -0.69898543 -0.30338692 -0.01181613 -1.28406323
[13] -2.92226747 -2.17371980  0.04428274 -1.13292810 -0.15512296 -1.37159255
[19]  0.04758385 -0.07458432 -2.47860533 -1.92263494 -1.08490244 -1.86651004
[25] -0.32495764 -1.08070491 -1.12559261 -1.38833109 -0.98317261 -2.12630659
[31]  2.21835181  3.74303686  1.88042146  2.48617995  2.14136852  2.30796765
[37]  2.99408134  1.48218823  1.19286361  0.07682104  0.61086149  2.42867002
[43]  1.70621858  4.27999879  0.83548924  3.24086762  0.50491614  1.76836367
[49]  1.17513326  0.67582686
(tumor <- factor(c(rep("Colon", 30), rep("Lung", 20))))
 [1] Colon Colon Colon Colon Colon Colon Colon Colon Colon Colon Colon Colon
[13] Colon Colon Colon Colon Colon Colon Colon Colon Colon Colon Colon Colon
[25] Colon Colon Colon Colon Colon Colon Lung  Lung  Lung  Lung  Lung  Lung
[37] Lung  Lung  Lung  Lung  Lung  Lung  Lung  Lung  Lung  Lung  Lung  Lung
[49] Lung  Lung
Levels: Colon Lung
# for ggplot it is more convenient to work with dataframes
genes <- data.frame(tumor, GeneA, GeneB)

# basic plots

# geneA

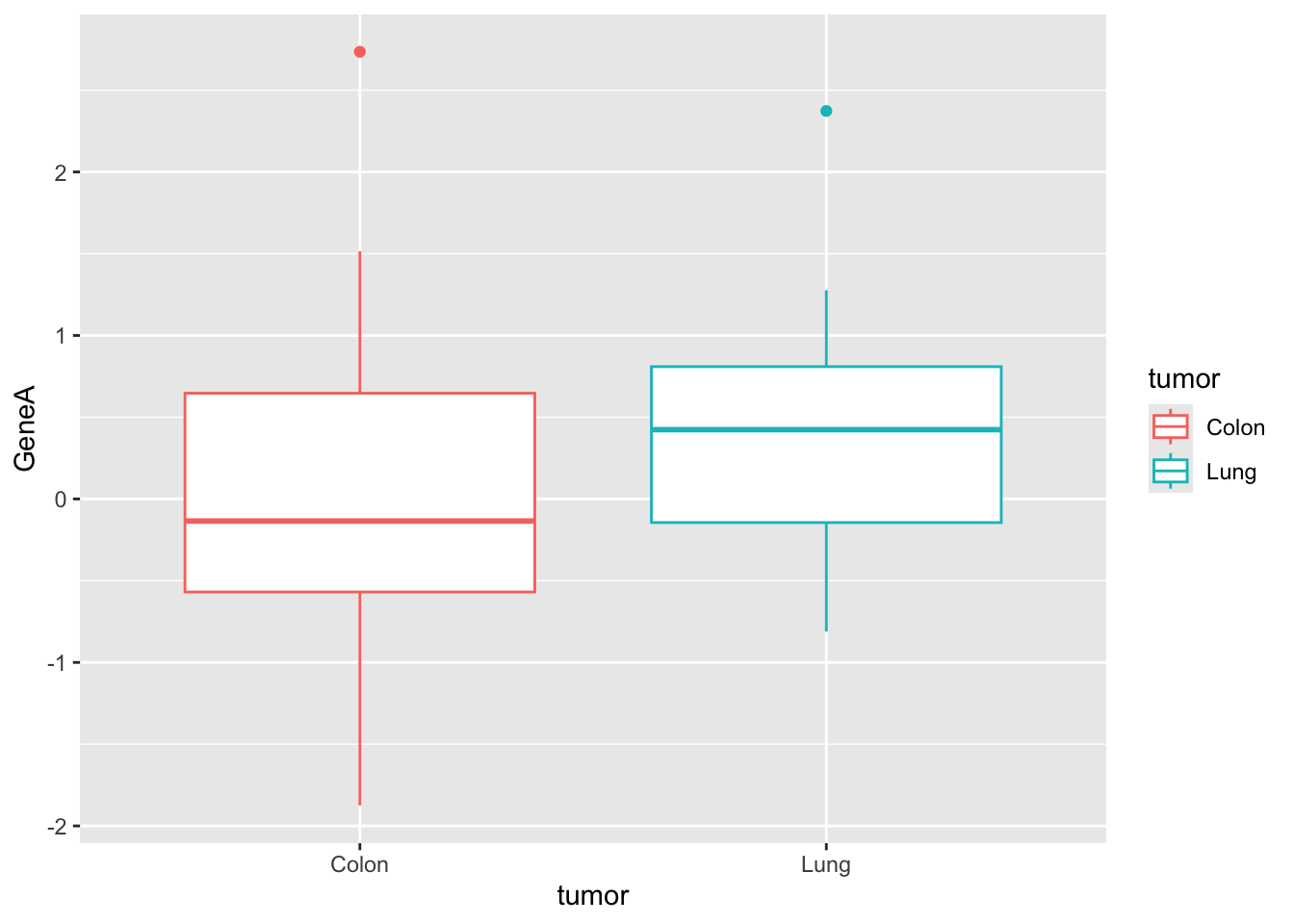

ggplot(genes, aes(x = tumor, y = GeneA, color = tumor)) + geom_boxplot()

# geneB with custom colors

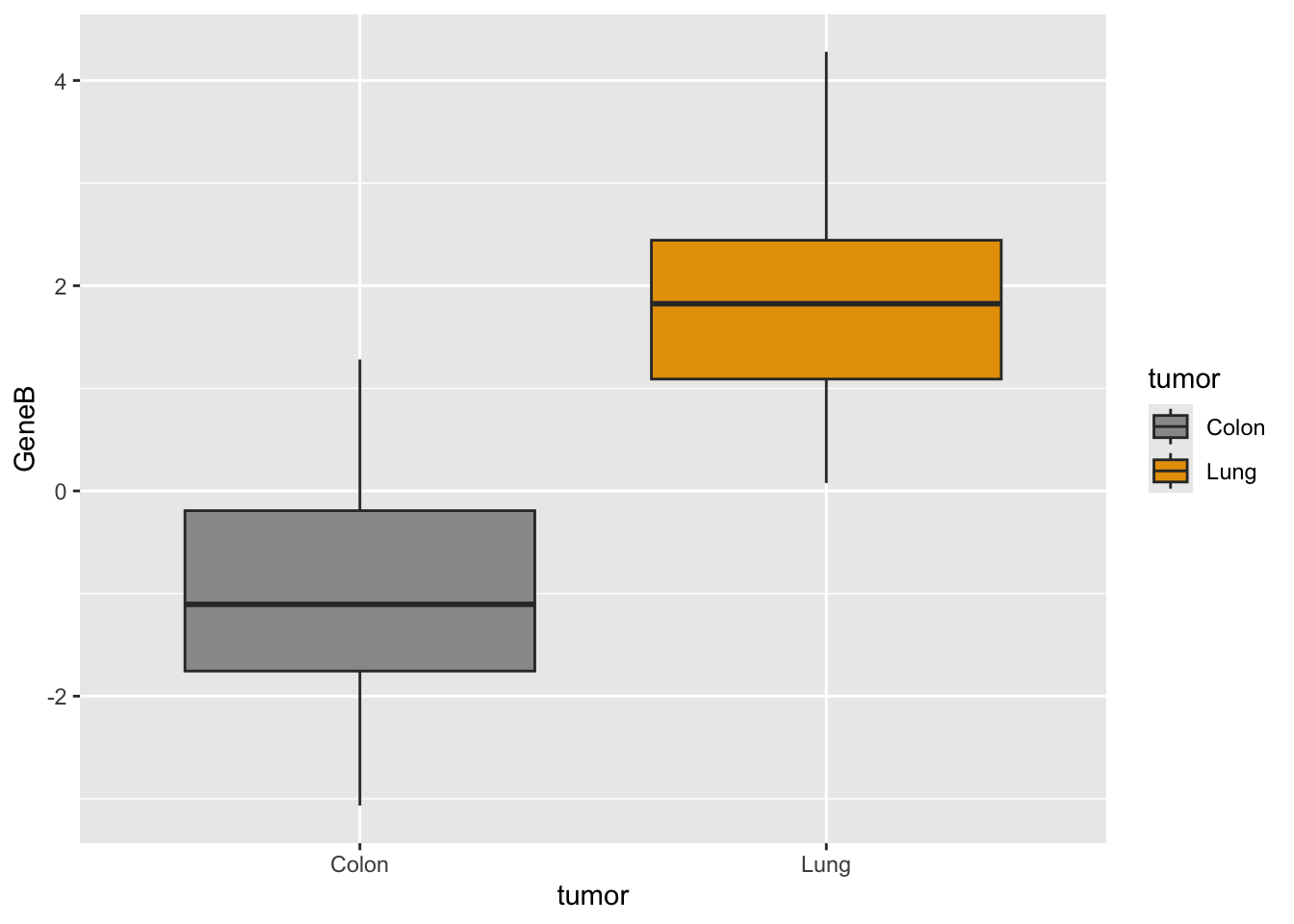

ggplot(genes, aes(x = tumor, y = GeneB, fill = tumor)) + scale_fill_manual(values = c("#999999",
    "#E69F00")) + geom_boxplot()

# together we need to adapt dataset with stack()
genes2 <- cbind(stack(genes[, 2:3]), tumor)
names(genes2) <- c("Expression", "Gene", "Tumor")
# plot

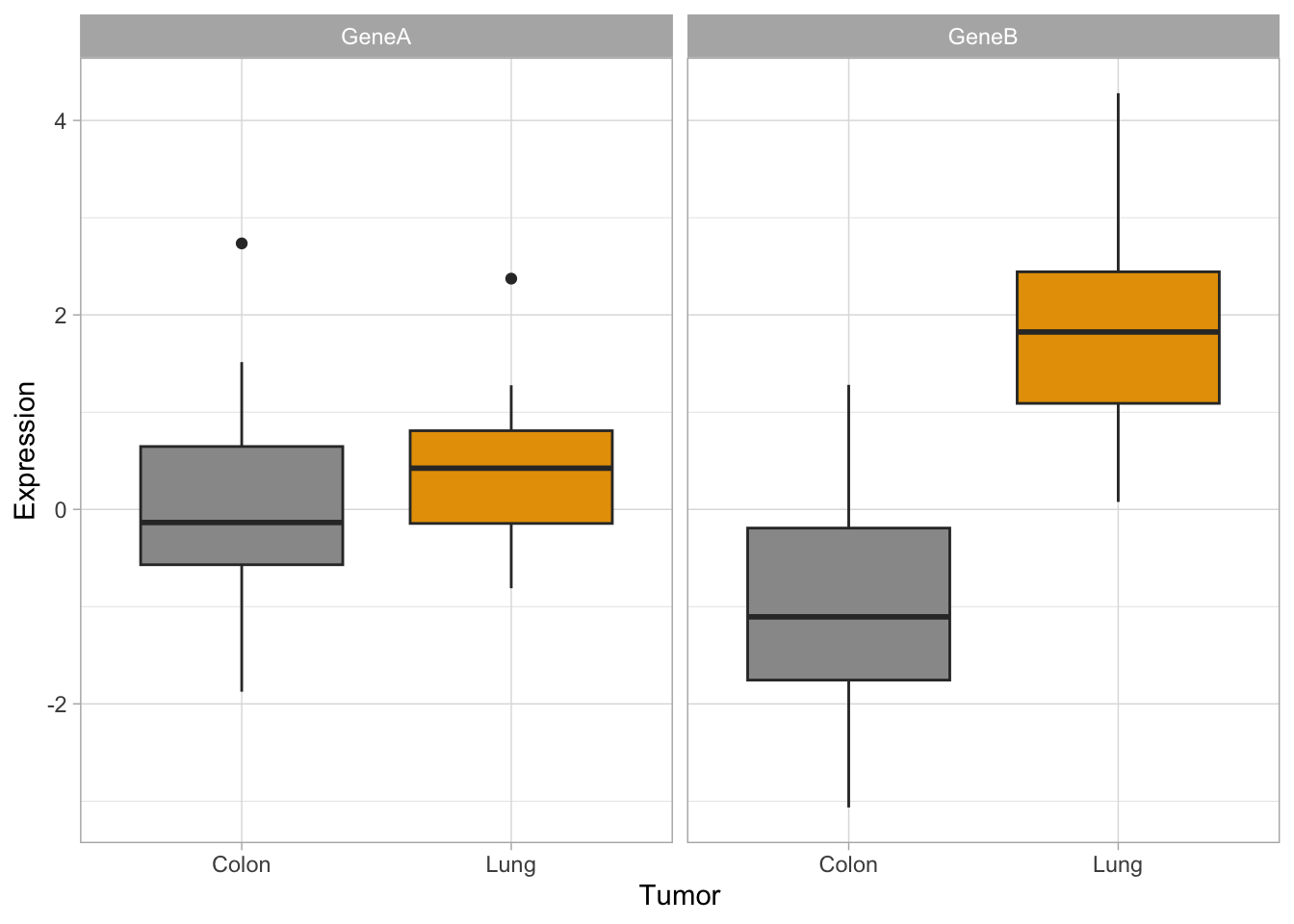

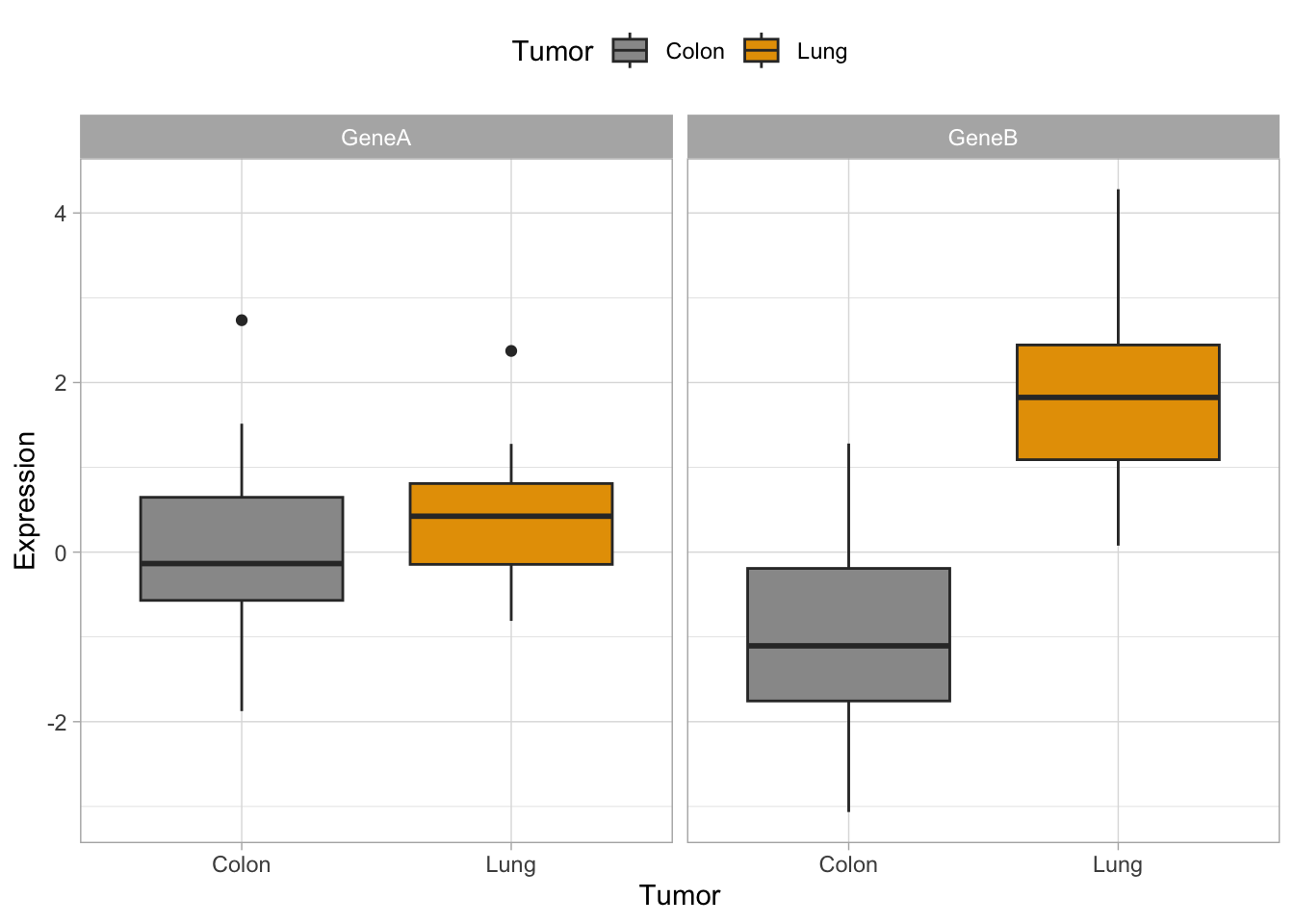

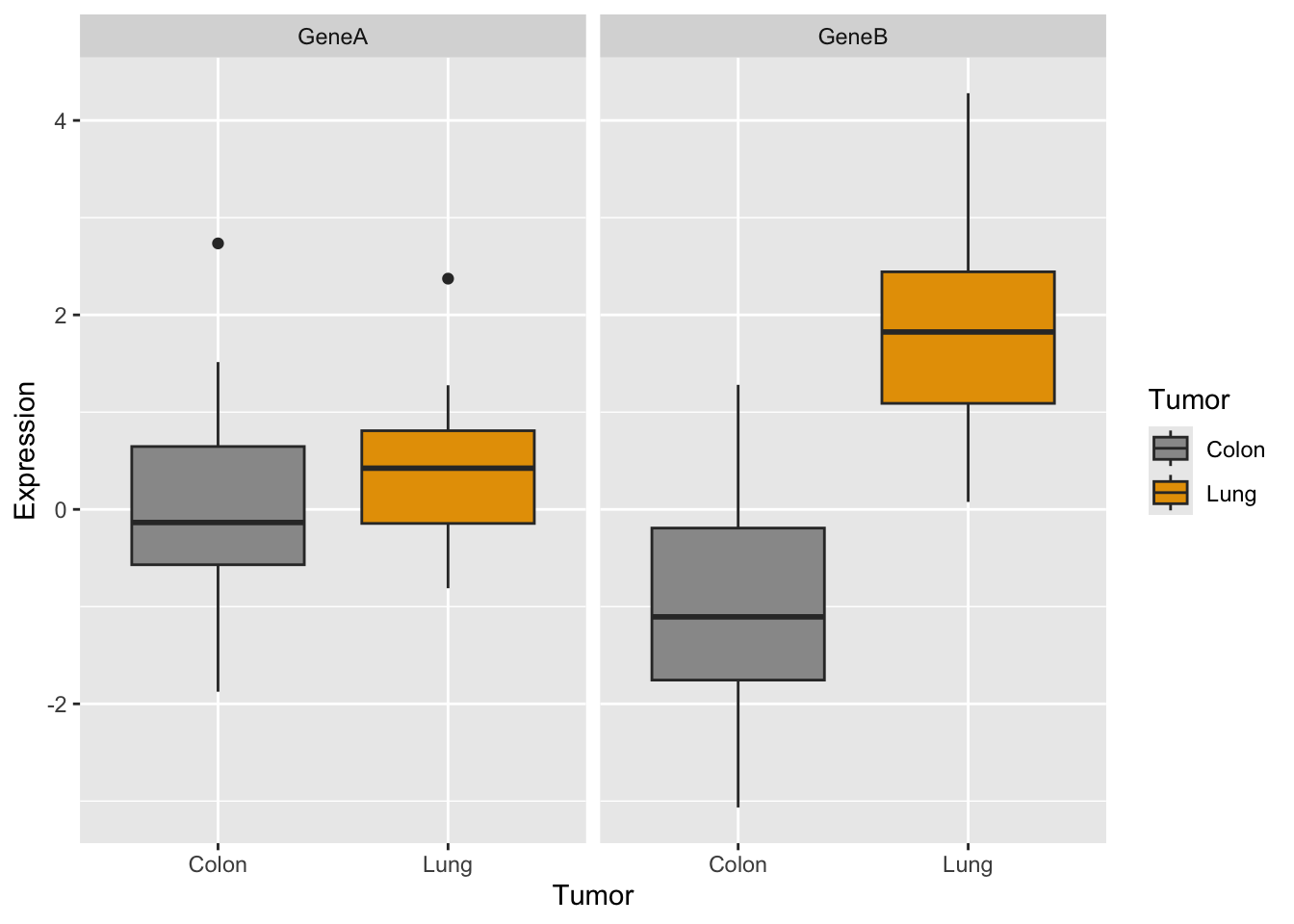

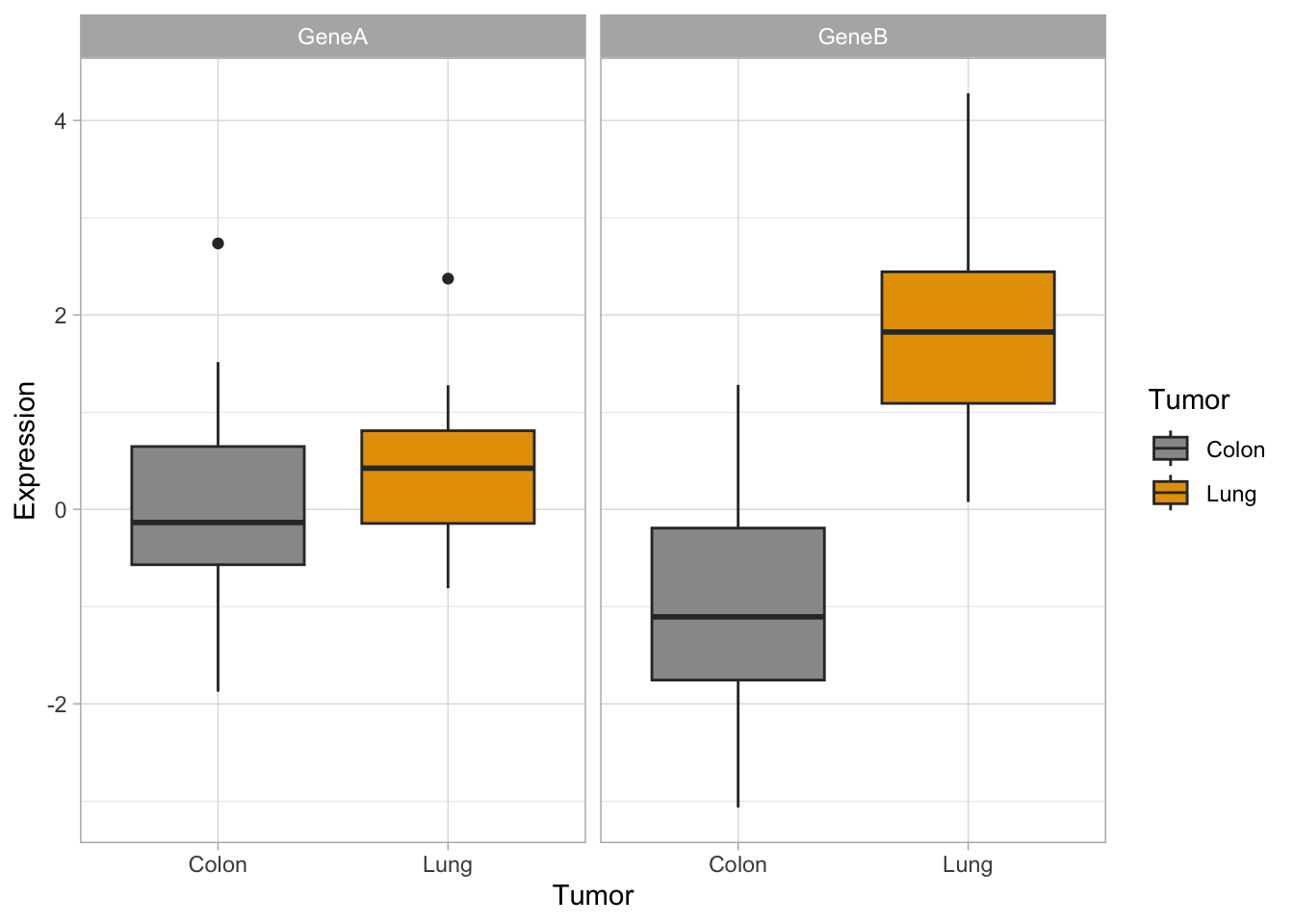

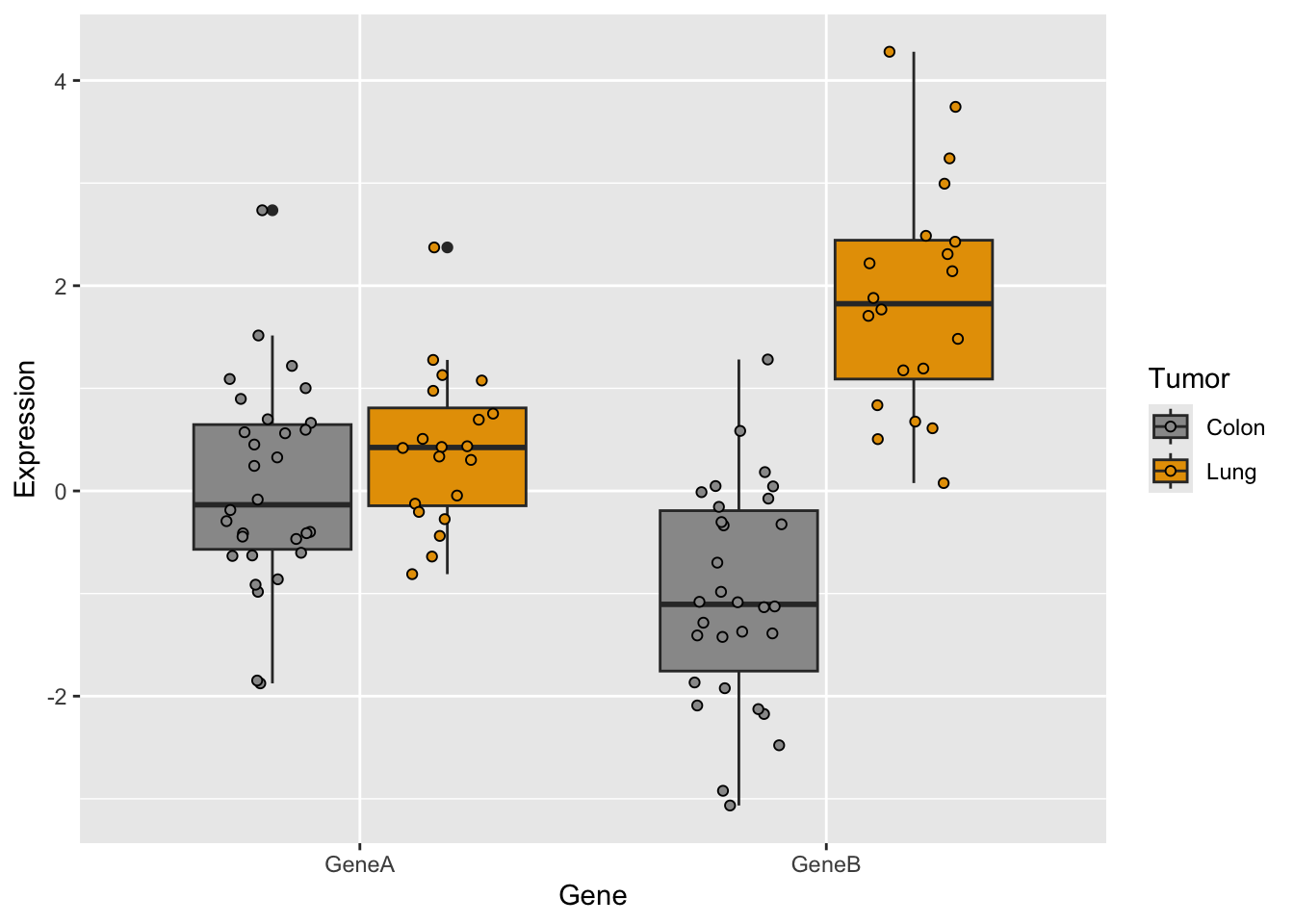

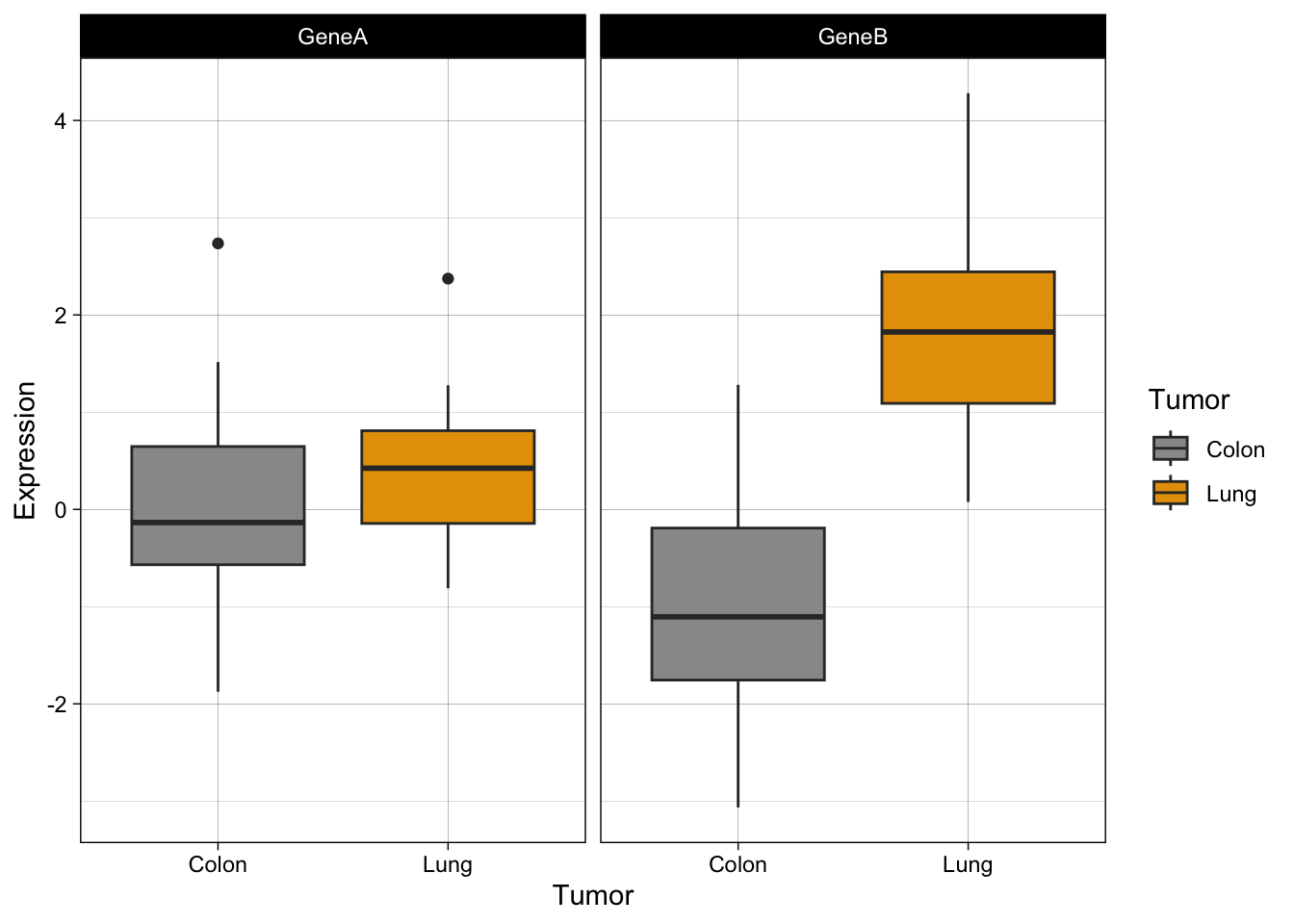

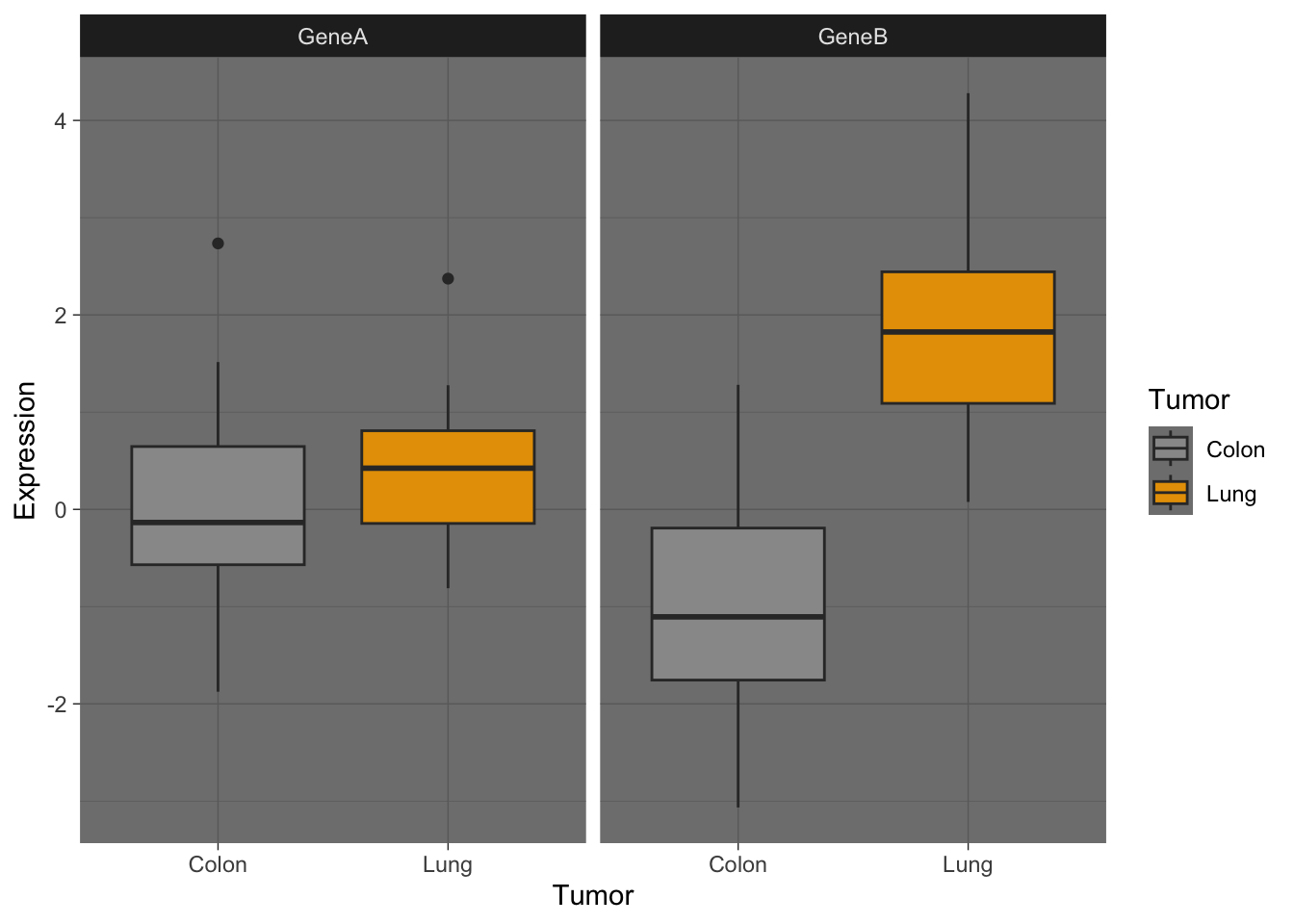

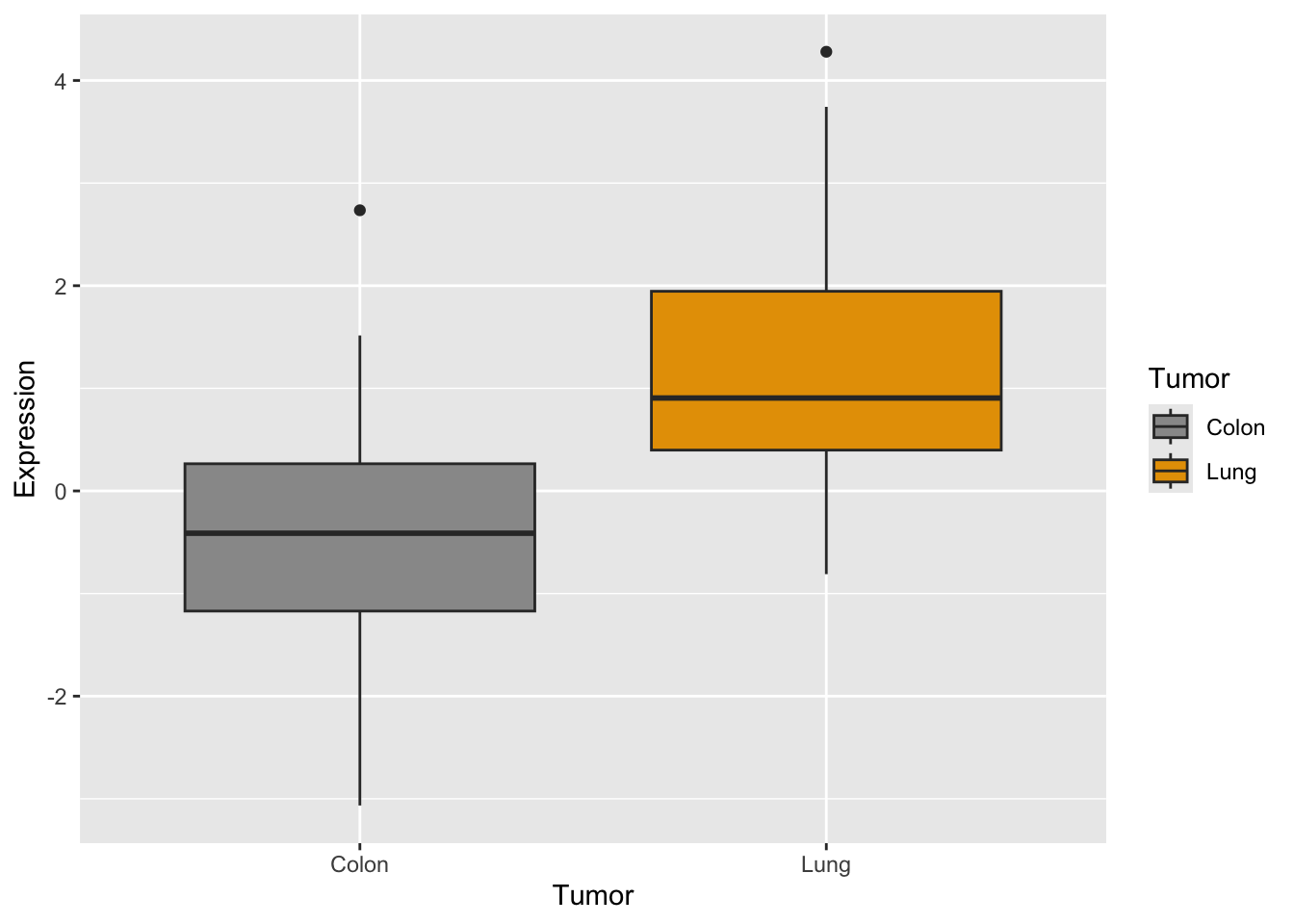

p <- ggplot(genes2, aes(x = Tumor, y = Expression, fill = Tumor)) +
    scale_fill_manual(values = c("#999999", "#E69F00")) + geom_boxplot()
p  #see the plot

5.1.1 Quick exercise

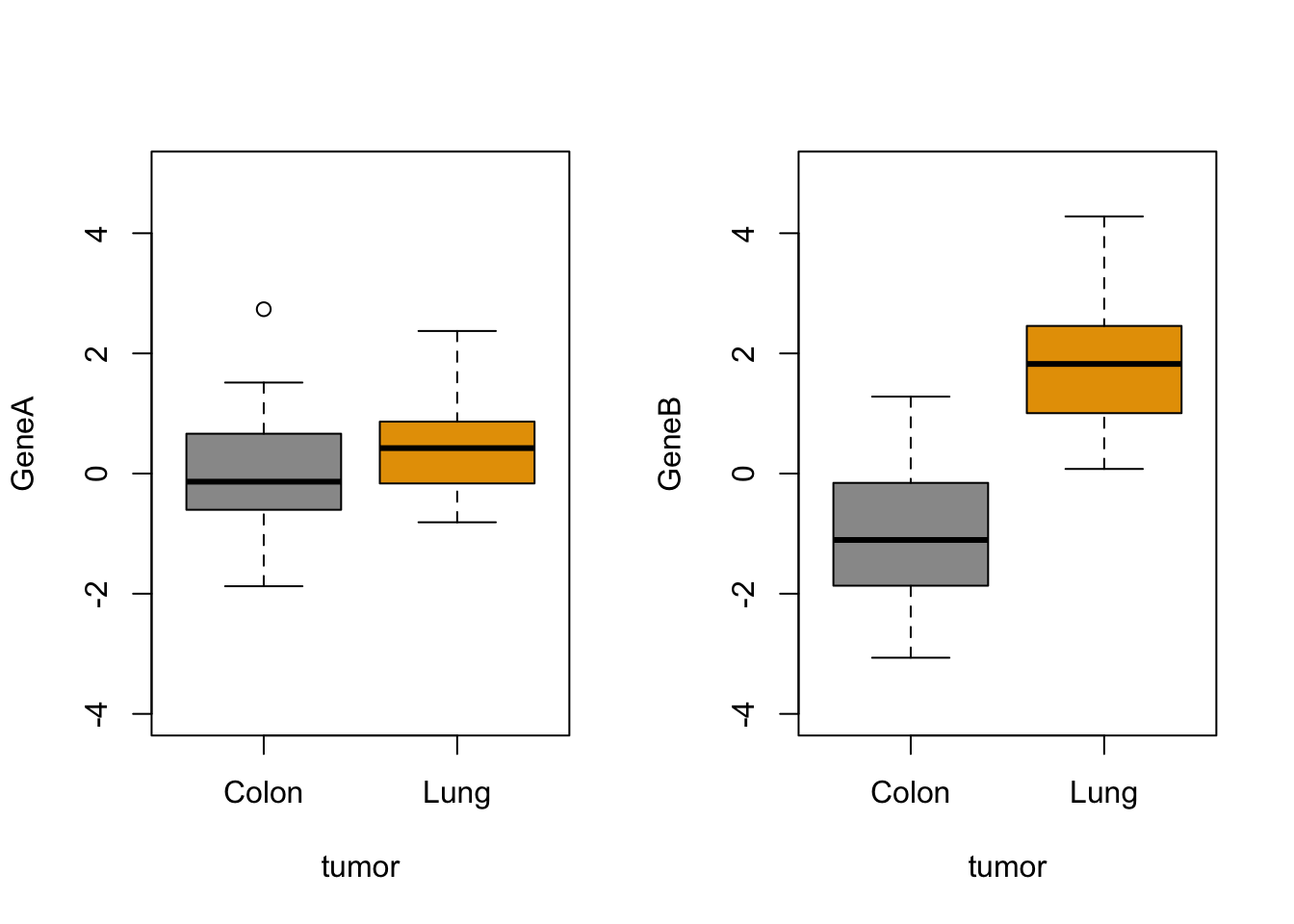

Do you remember how you did the boxplot in two panels with base R plots?

# define the setup
par(mfrow = c(1, 2))

# generate the two plots
boxplot(GeneA ~ tumor, col = c("#999999", "#E69F00"), ylim = c(-4,
    5))
boxplot(GeneB ~ tumor, col = c("#999999", "#E69F00"), ylim = c(-4,
    5))

Now let’s try the same with ggplot:

How would you generate a two-panels boxplot for each gene with ggplot?

What do you think?

As we mentioned above, ggplot may seem more complicated but when you compare it’s a flexible and powerful way to obtain cool plots with one single line code.

For simple plots, the degree of difficulty and the time consumption of making them with base R plot functions like boxplot() or stripchart() or with ggplot() is very similar, but this is only the very tip of the ggplot iceberg.

Customization of your plot is very easy thanks to the themes, and other options, as in the examples below. Check for built-in ggplot themes: https://ggplot2.tidyverse.org/reference/ggtheme.html. Also, you can find some packages with custom themes and you can create your own theme (check this article by Emanuela Furfaro).

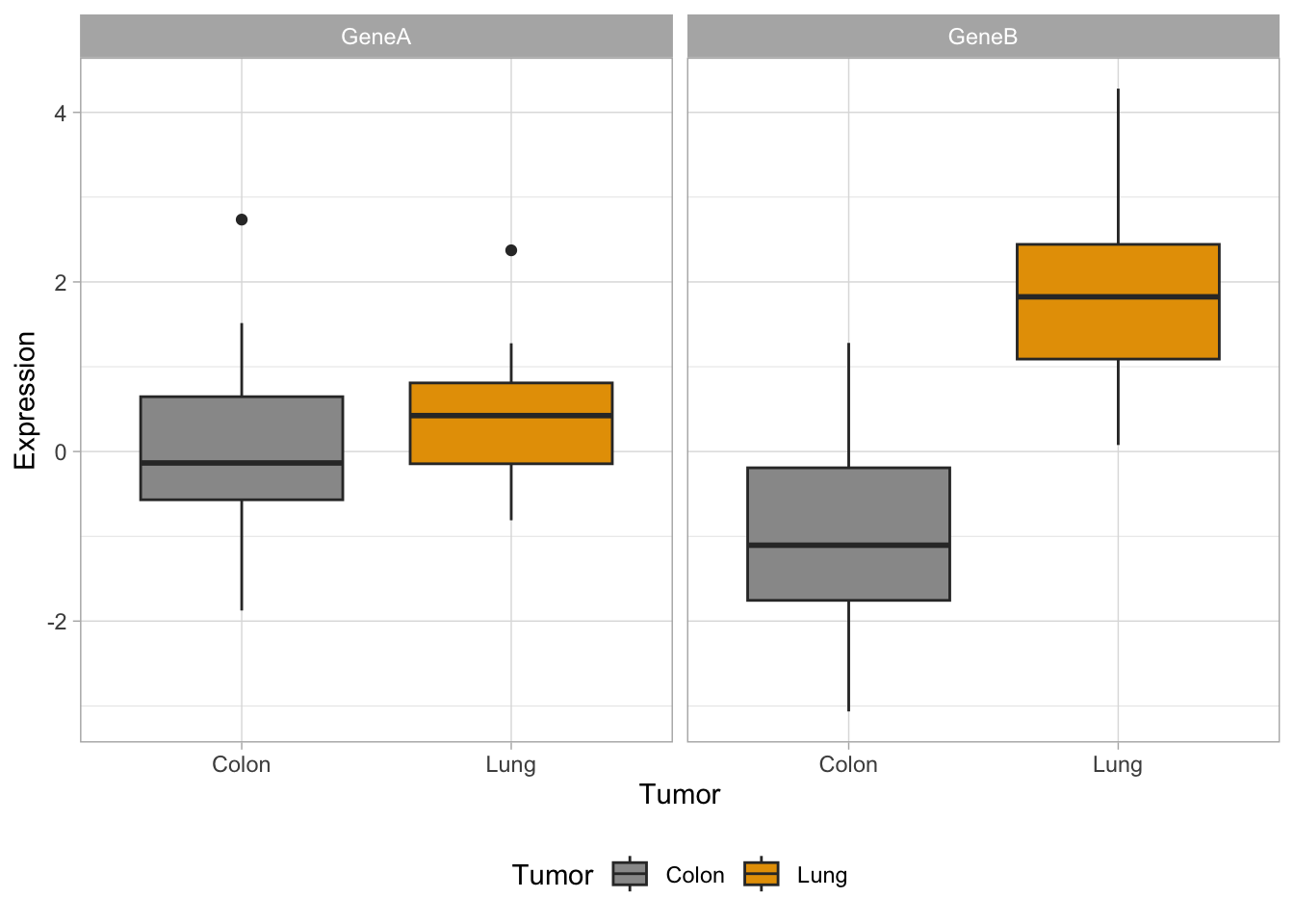

(q <- p + facet_grid(. ~ Gene) + theme_light())

(q2 <- p + facet_grid(. ~ Gene) + theme_dark())

(q3 <- p + facet_grid(. ~ Gene) + theme_linedraw())

q + stat_boxplot(geom = "errorbar", width = 0.5, alpha = 0.5)

q + theme(legend.position = "top")

q + theme(legend.position = "bottom")

q + theme(legend.position = "none")

Now, let’s try some more cool example plots with these same data. Note the effect of the option position in the dotplots and how we can make different plots with the data, like density curves and violin plots.

r <- ggplot(genes2, aes(x = Gene, y = Expression, fill = Tumor)) +
    scale_fill_manual(values = c("#999999", "#E69F00")) + geom_boxplot()

r + geom_dotplot(binaxis = "y", stackdir = "center", position = position_dodge(0.75))
Bin width defaults to 1/30 of the range of the data. Pick better value with
`binwidth`.

r + geom_point(pch = 21, position = position_jitterdodge())

# more examples
a <- ggplot(genes2, aes(x = Expression))
a + geom_density(aes(fill = Gene), alpha = 0.4) + scale_fill_manual(values = c("#868686FF",
    "#EFC000FF")) + theme_classic() + facet_grid(. ~ Tumor)

library(RColorBrewer)
a <- ggplot(genes2, aes(x = Gene, y = Expression, fill = Tumor)) +
    scale_fill_brewer(palette = "Pastel1") + geom_violin(alpha = 0.4,
    position = "dodge")

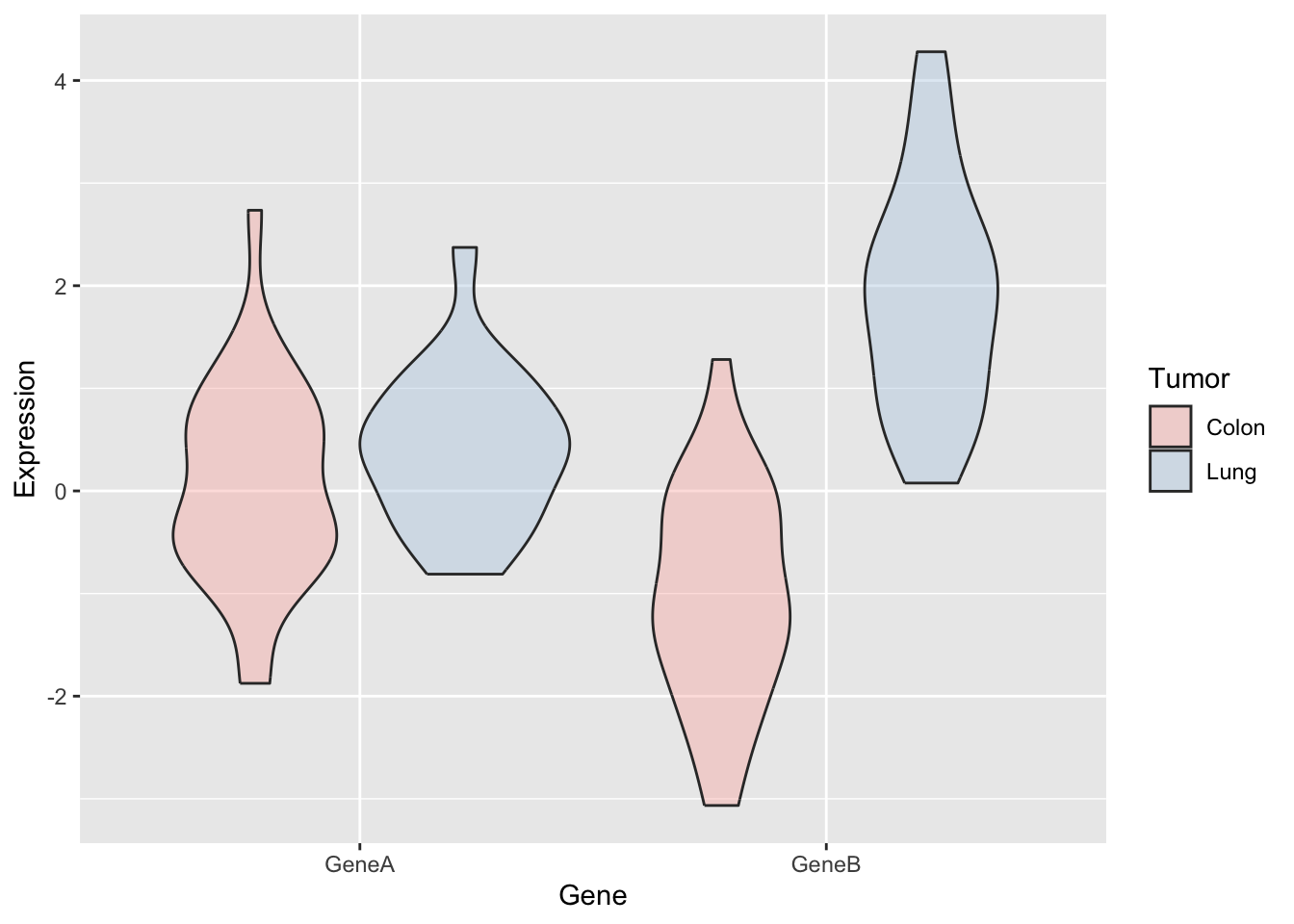

a

5.2 Example 3: Color palettes and other plot customization

When you have large datasets or several factors in your data, selecting the colors is not trivial. In R, there are defined color combinations or palettes that you can select in your plot. Moreover, there are also several packages that contain custom color palettes suitable for base plots and/or ggplots, like viridis or RColorBrewer. You may also find interesting the package ggsci, which contains palettes with colors used in scientific journals, data visualization libraries, science fiction movies…

To obtain the desired plot, you sometimes need to rotate the axis x labels, which must be done within a theme() argument. You can customize the label rotation, justification, font…

coli_genomes <- read.csv(file = "data/coli_genomes_renamed.csv",
    strip.white = TRUE, stringsAsFactors = TRUE)
p <- ggplot(coli_genomes, aes(x = Strain, y = contigs1kb, fill = Source)) +
    geom_bar(stat = "identity", position = "dodge", alpha = 0.6)

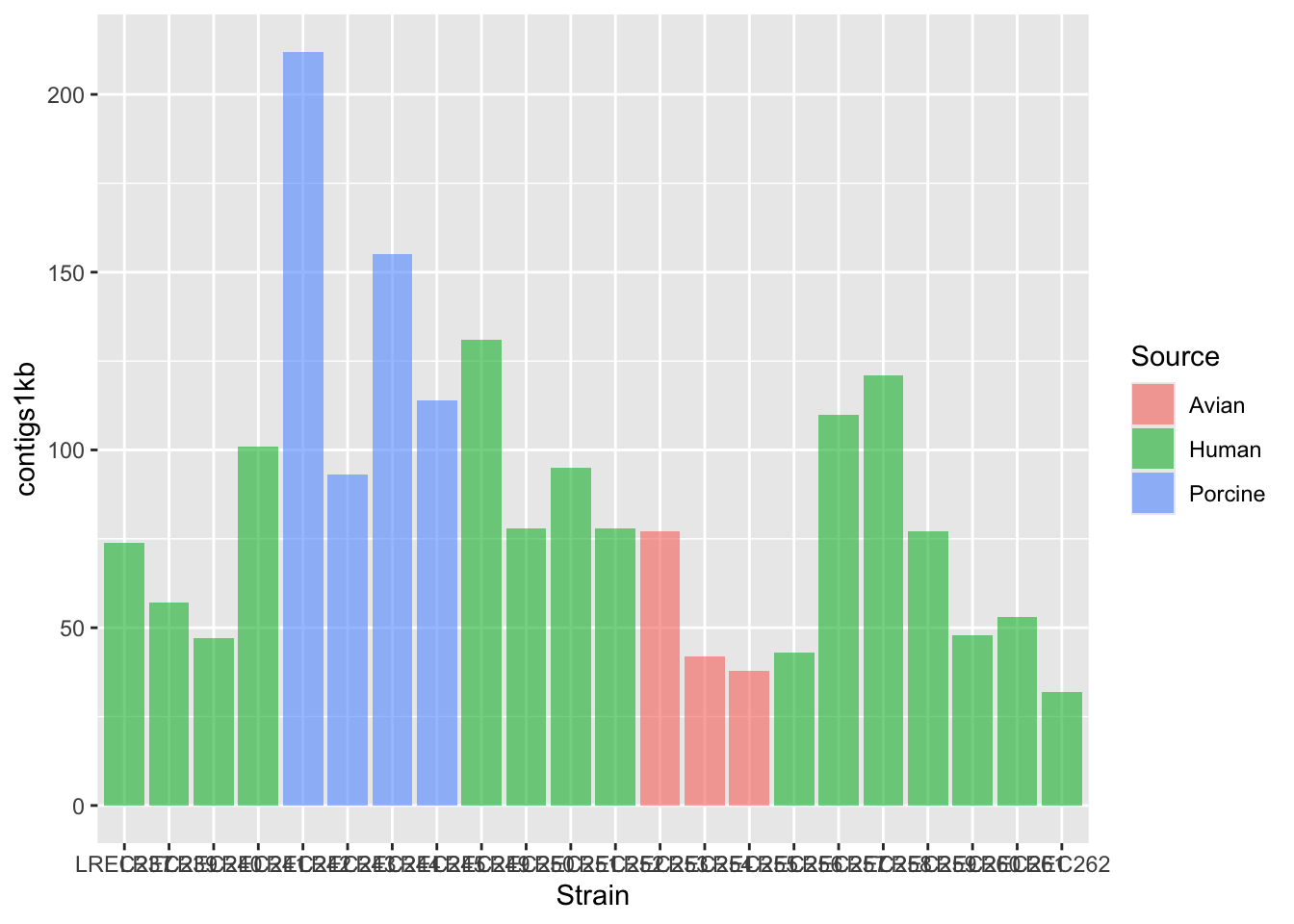

p

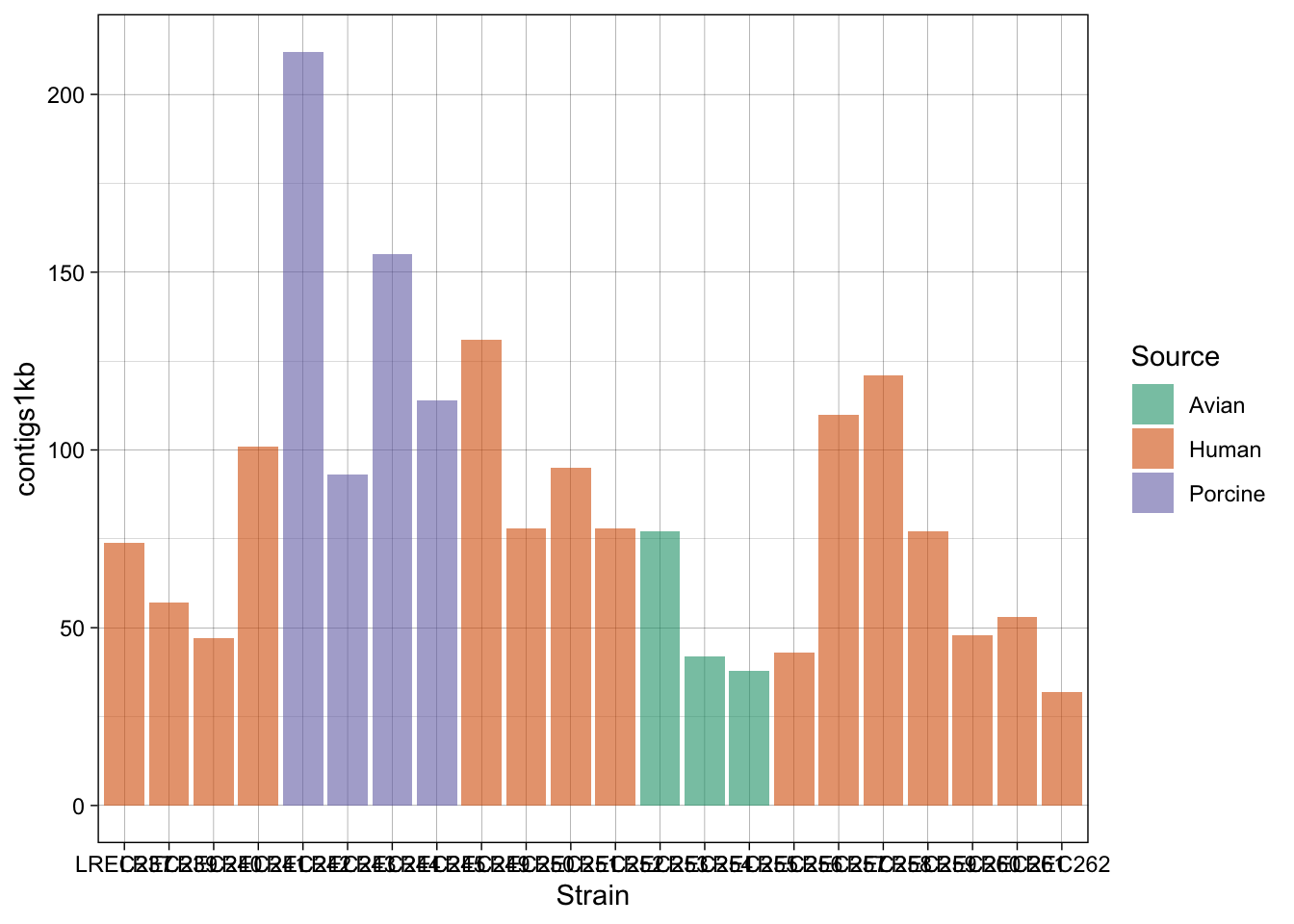

p2 <- p + scale_fill_brewer(palette = "Dark2") + theme_linedraw()
p2

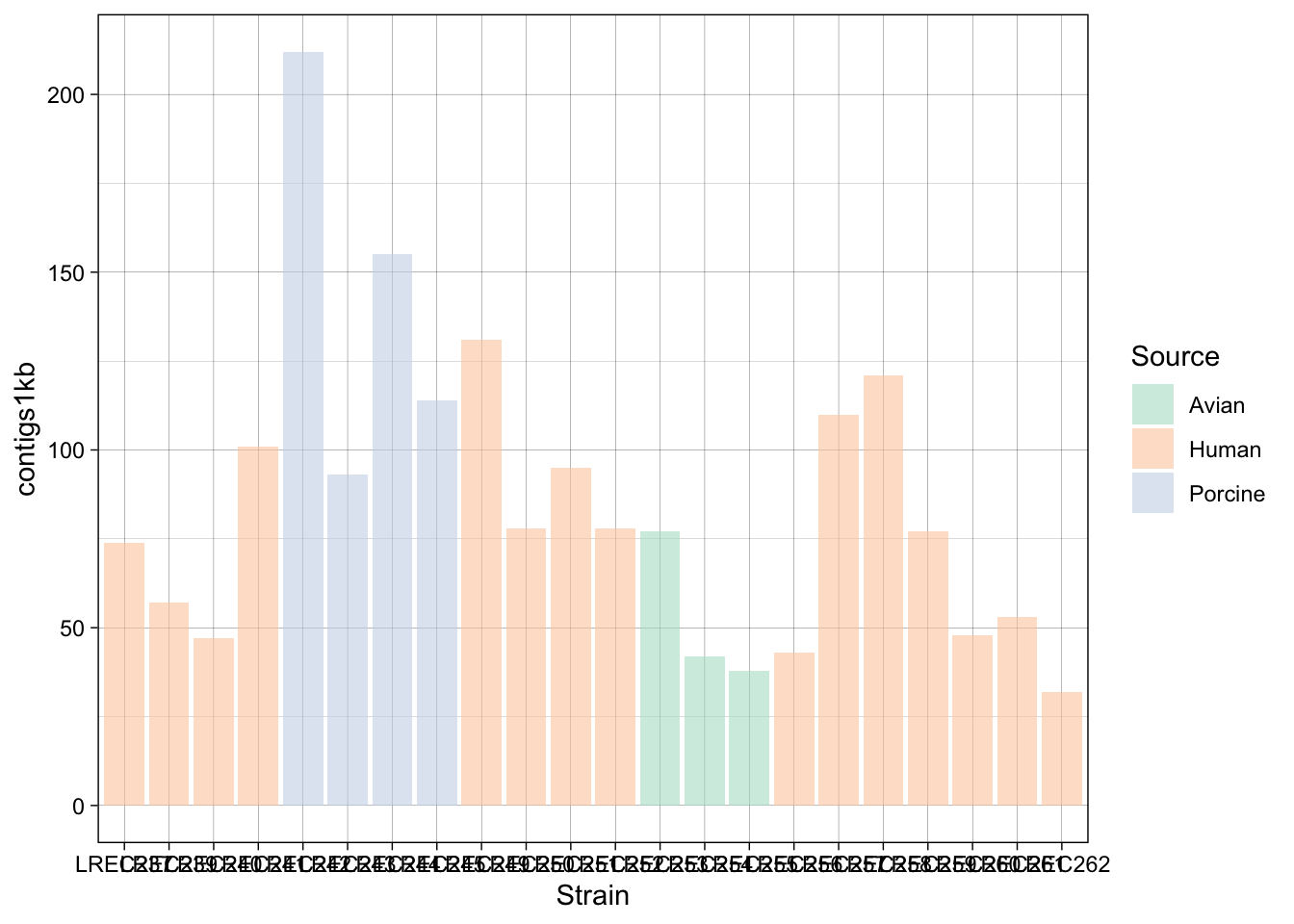

p2b <- p + scale_fill_brewer(palette = "Pastel2") + theme_linedraw()
p2b

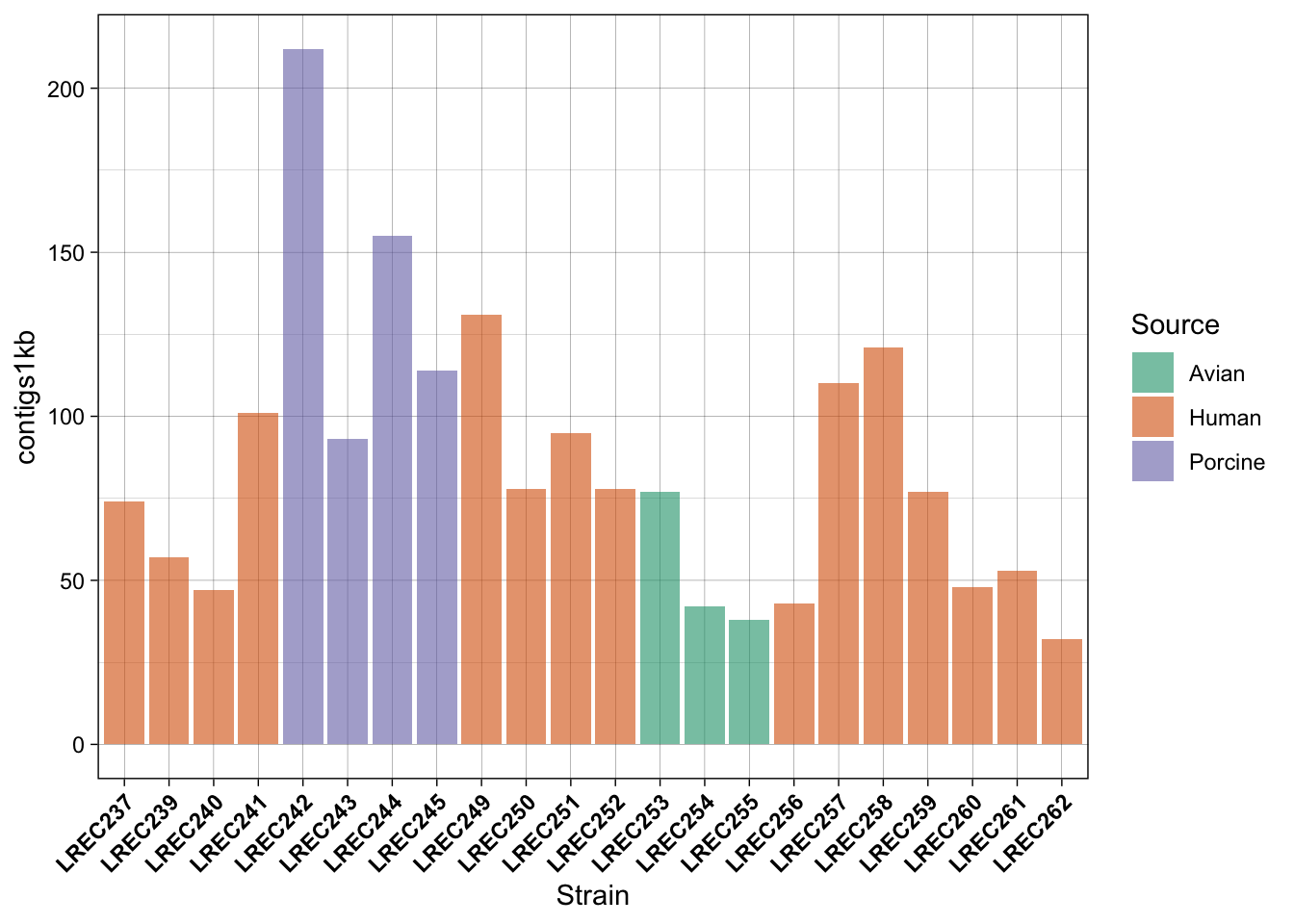

p3 <- p2 + theme(axis.text.x = element_text(angle = 45, hjust = 1,
    face = "bold"))
p3

In the examples above, we generated a plot and then make variations with some custom palettes (p2). The palettes are available in ggplot, but in order to explore and edit them, you need to install the package. Also, in the plot p3, we modified the font and orientation of the axis labels using a new theme() layer, that contains the text personalizations.

As mentioned above, one of the most common palette packages is RColorBrewer. Let’s check it out.

if (!require(RColorBrewer)) install.packages("RColorBrewer")
library(RColorBrewer)

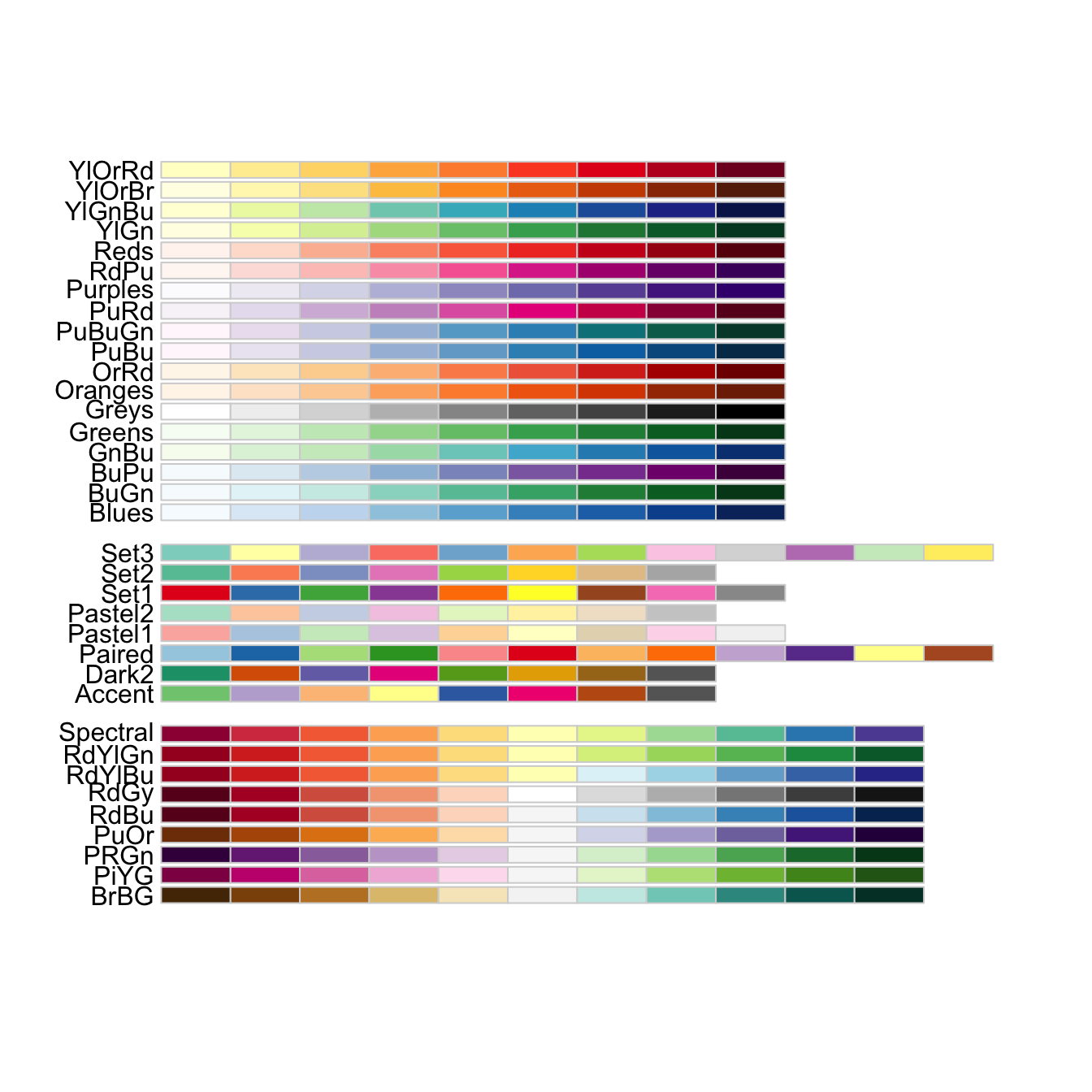

display.brewer.all()

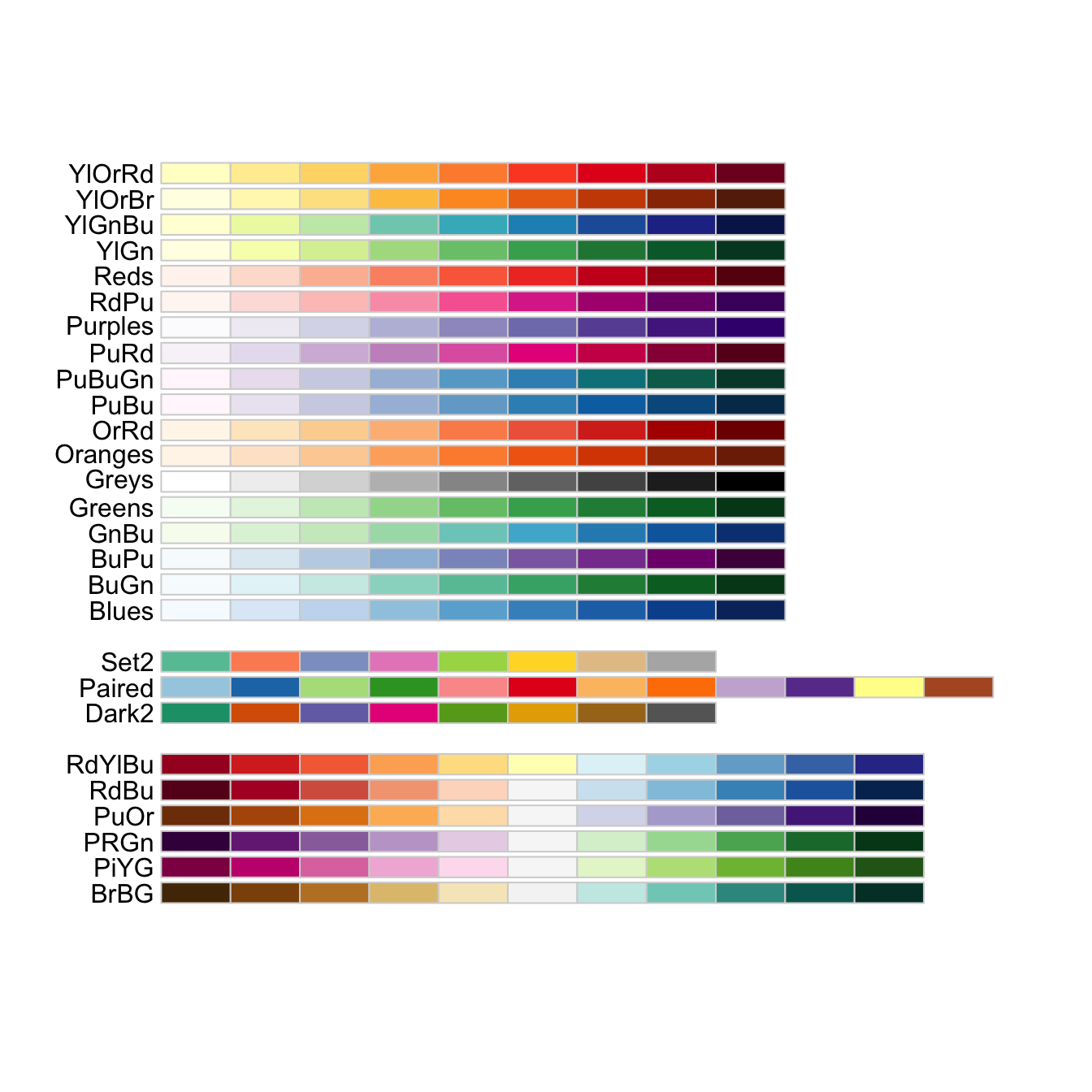

display.brewer.all(colorblindFriendly = TRUE)  #only colorblind-friendly!

# display only the a number of colors from specific palette

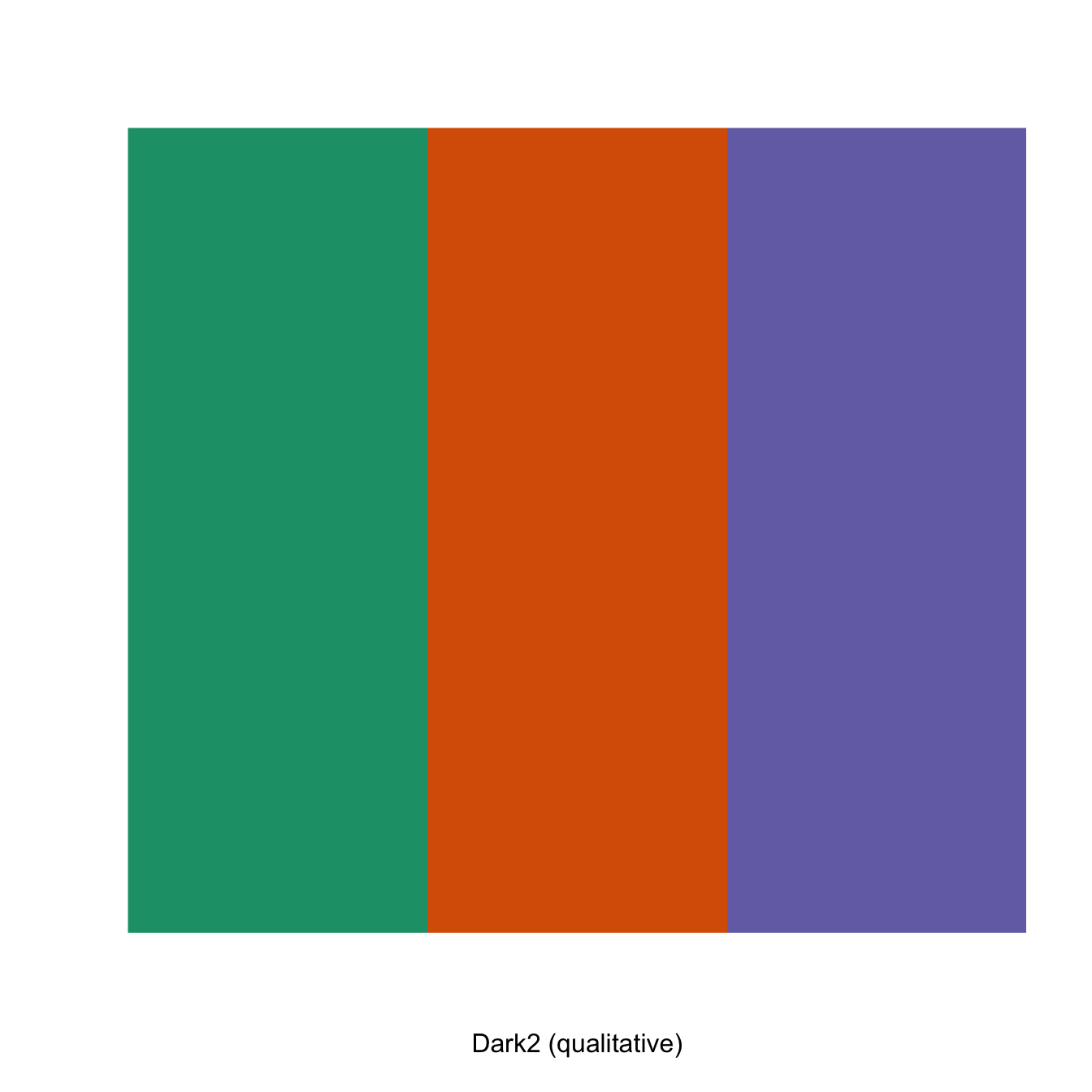

display.brewer.pal(n = 3, name = "Dark2")

5.2.1 Saving your plot

Finally, saving plots is also very easy with ggplot2, check the function ggsave().

# save
ggsave(filename = "plot_p3.svg", plot = p3, width = 10, height = 6)

Of course, you can also do it the same way than with Base plots:

svg("plot_p3b.svg")
print(p3)
dev.off()
quartz_off_screen
                2

5.3 Example 4: Plotting multiple variables

One of the nice ways to summarize data is plotting more than one variable in the same plot. However, you should consider that different data may need different scale to be render in the same plot. Thus, you should scale up/down the data of one variable to the values of the second variable. Then, for the secondary axis, you just need to apply the same scaling factor in the opposite direction.

In the following example, we plot the number of Contigs and the Assembly length from our coli_genomes.csv.

# barplot
plots2 <- ggplot(data = coli_genomes) + geom_bar(aes(x = Strain,
    y = Contigs, color = Source, fill = Source), stat = "identity")
# add the points and adjust the scale in the right axis
plots2b <- plots2 + geom_point(aes(x = Strain, y = Assembly_length/15000,
    fill = Source, alpha = 0.8), col = "black", shape = 21, size = 3)

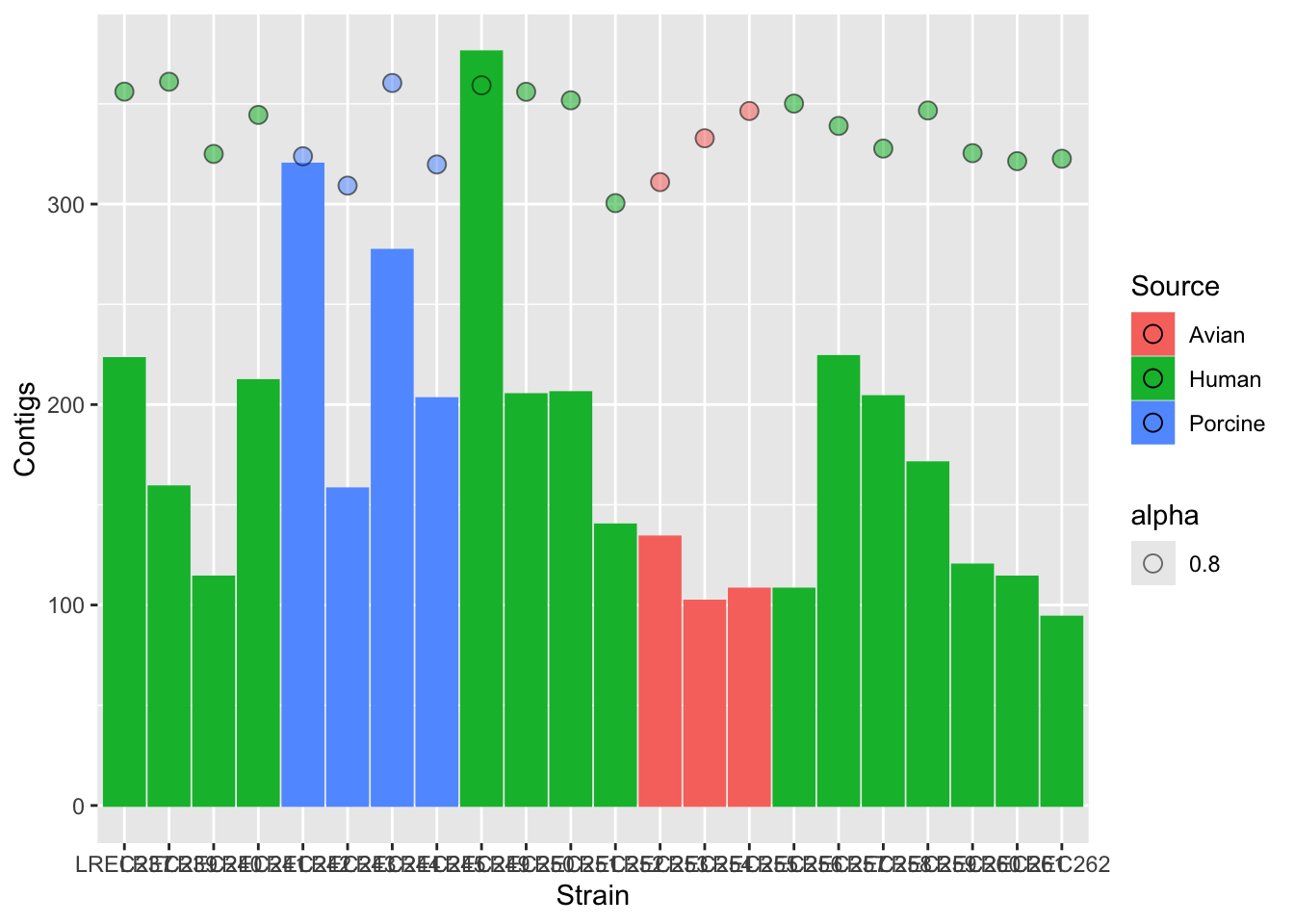

plots2b

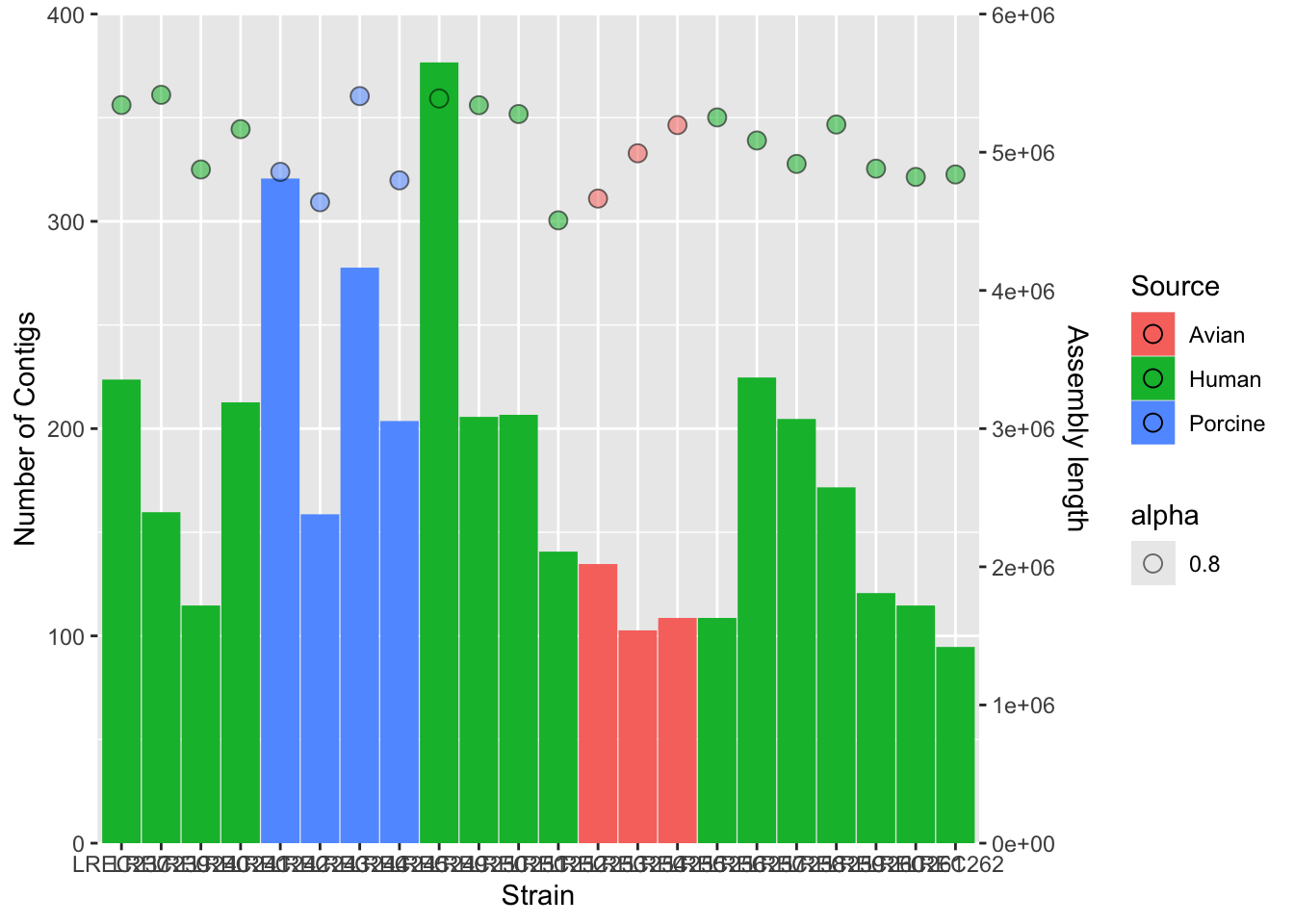

plots2c <- plots2b + scale_y_continuous(name = "Number of Contigs",
    limits = c(0, 400), expand = c(0, 0), sec.axis = sec_axis(~15000 *
        ., name = "Assembly length"))
plots2c

# add colors and more customization

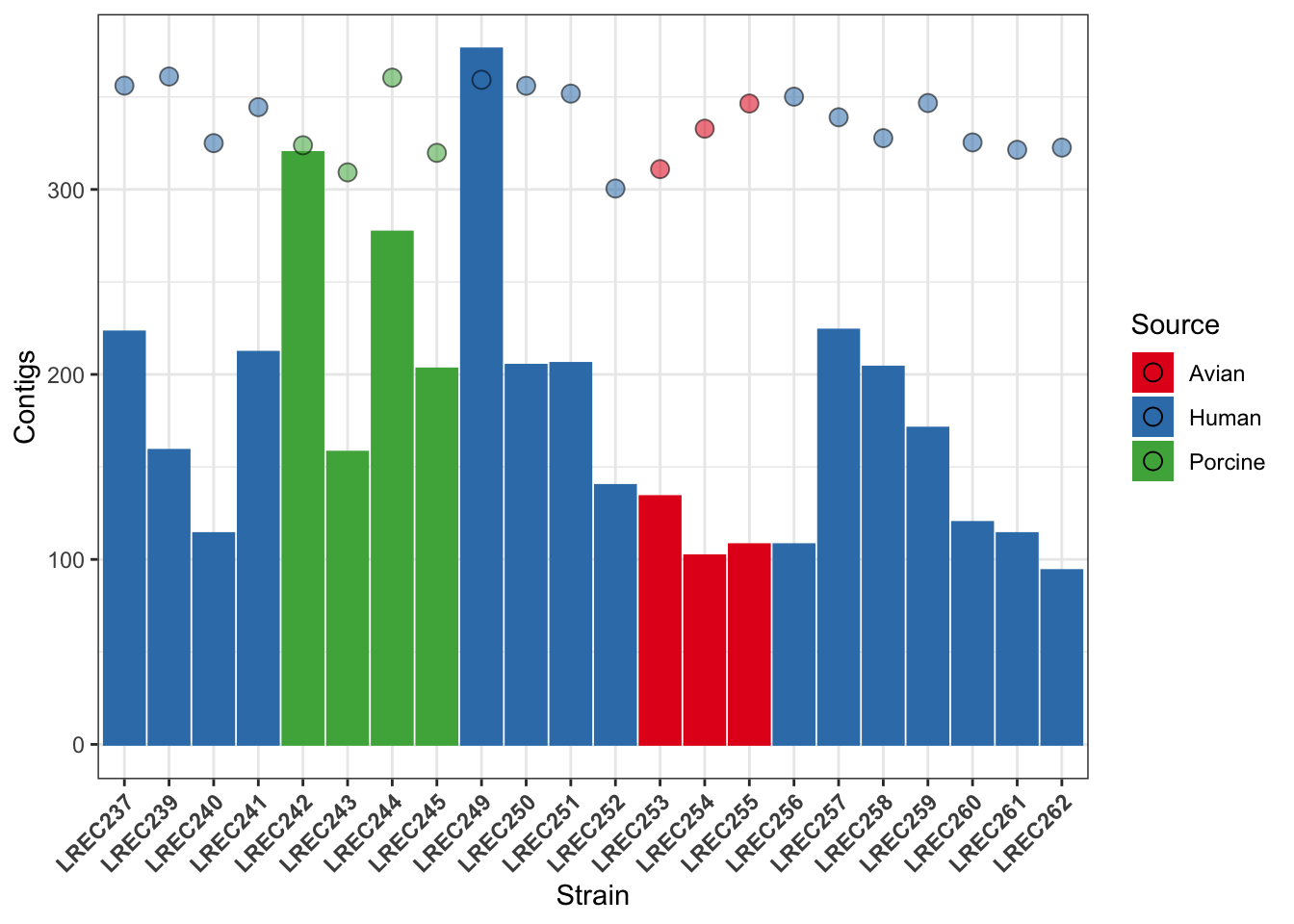

plots2custom <- plots2b + scale_fill_brewer(palette = "Set1") +
    scale_color_brewer(palette = "Set1") + theme_bw() + theme(axis.text.x = element_text(angle = 45,
    hjust = 1, face = "bold")) + guides(alpha = "none", color = "none")
plots2custom

We did the plot in different stages, to check each of the variables and the scale of the secondary axis before apply the customization. As the two variables have different range of value, we need to scale them. In this example, we scale-down the data (/ 15000) and then scale-up the axis to show the real data (* 15000).

As you noticed, axis customization may entail adjust the limits with limits(), the axis expansion below and above those limits with expand(), and other aspects as the axis ticks with breaks(). We also can add/remove a legend with the argument guides().

6 Beyond ggplot

As mentioned above, ggplot is already an standard and the base of many derivative packages. We are going to see a couple of examples, but there are many, including packages for specific tasks, like working with maps or sequences. We will see in the lesson R8 the packages ggmsa() and ggseqlogo().

6.1 Interactive plots

Another interesting application of ggplot is its use for the generation of interactive plots to be published on websites. One that you might find of interest is the package heatmaply, that generates interactive heatmaps. Further, I find awesome the use of the package plotly() for very quick upgrade of any plot as interactive.

See the examples:

# install.packages('ggplotly')
# install.packages('heatmaply')

library(heatmaply)
Loading required package: plotly

Attaching package: 'plotly'
The following object is masked from 'package:ggplot2':

    last_plot
The following object is masked from 'package:stats':

    filter
The following object is masked from 'package:graphics':

    layout
Loading required package: viridis
Loading required package: viridisLite

======================
Welcome to heatmaply version 1.5.0

Type citation('heatmaply') for how to cite the package.
Type ?heatmaply for the main documentation.

The github page is: https://github.com/talgalili/heatmaply/
Please submit your suggestions and bug-reports at: https://github.com/talgalili/heatmaply/issues
You may ask questions at stackoverflow, use the r and heatmaply tags:
     https://stackoverflow.com/questions/tagged/heatmaply
======================
# aggregate the data with xtabs
matrix <- xtabs(~coli_genomes[, 4] + coli_genomes[, 5])
# xtabs objects must be converted into dataframes, but
# heatmaply requires a matrix...
heatmaply(as.data.frame.matrix(matrix))
library(plotly)
ggplotly(plots2custom)

7 Review exercises 2: ggplot

1. The table coli_curve.csv contains the growth curves of three E. coli strains. Plot the curves as scatterplot and lines containing the 90% confidence interval for the three strains.

Tips.

  • Check the ggplot geom geom_smooth() for the confidence interval.

  • Also, it would be better if you color the data by strains, but keep the information of each sample measure using, for instance, the point shape.

2. The table microbe_download.csv contains the data of worldwide human deceases associated with antimicrobial resistance, as indicated in the column Counterfactual (data from https://vizhub.healthdata.org/microbe/). Explore the data and use it to reproduce the following barplots.

Tips.

  • You will need to check geom_errorbar() for the first plot.

  • For the second plot, you will need to order the data by the total number of Deaths.

  • Also, adjust the plot margins in order to show all the x-axis labels.

8 Extra exercises

9 References

  1. R in action. Robert I. Kabacoff. March 2022 ISBN 9781617296055

  2. Who needs dataviz anyway: https://rpubs.com/tylerotto/DinosaurusDozen

  3. R Graphics Cookbook: https://r-graphics.org/ (Chapter 2).

  4. Graphics with Base R: https://intro2r.com/graphics_base_r.html

  5. Beyond Bar and Line Graphs: Time for a New Data Presentation Paradigm (Weissberger et al. Plos Biology 2015).

  6. I also advise checking articles and posts that you can find with Google, such as:

  7. R Graphics Cookbook: https://r-graphics.org/ (I recommend the Appendix A: Understanding ggplot).

  8. GGplot cheatsheet: https://www.maths.usyd.edu.au/u/UG/SM/STAT3022/r/current/Misc/data-visualization-2.1.pdf

  9. ggplot2 in “Introducción a la ciencia de datos” (Spanish!): http://rafalab.dfci.harvard.edu/dslibro/ggplot2.html

  10. “Una breve introducción a ggplot” by Prof. José Ramón Berrendero @UAM (Spanish!): http://verso.mat.uam.es/~joser.berrendero/R/introggplot2.html

  11. Color palettes in R: https://www.datanovia.com/en/blog/top-r-color-palettes-to-know-for-great-data-visualization/

  12. Awesome ggplot2 addons and tricks: https://github.com/erikgahner/awesome-ggplot2

10 Session Info

sessionInfo()
R version 4.4.1 (2024-06-14)
Platform: x86_64-apple-darwin20
Running under: macOS Sonoma 14.6.1

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/4.4-x86_64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-x86_64/Resources/lib/libRlapack.dylib;  LAPACK version 3.12.0

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

time zone: Europe/Madrid
tzcode source: internal

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
 [1] heatmaply_1.5.0    viridis_0.6.5      viridisLite_0.4.2  plotly_4.10.4
 [5] RColorBrewer_1.1-3 ggplot2_3.5.1      data.table_1.17.0  webexercises_1.1.0
 [9] formatR_1.14       knitr_1.50

loaded via a namespace (and not attached):
 [1] generics_0.1.3    tidyr_1.3.1       stringi_1.8.7     digest_0.6.37
 [5] magrittr_2.0.3    evaluate_1.0.3    grid_4.4.1        iterators_1.0.14
 [9] fastmap_1.2.0     plyr_1.8.9        foreach_1.5.2     jsonlite_2.0.0
[13] seriation_1.5.7   gridExtra_2.3     httr_1.4.7        purrr_1.0.4
[17] crosstalk_1.2.1   scales_1.3.0      codetools_0.2-20  lazyeval_0.2.2
[21] textshaping_1.0.0 registry_0.5-1    cli_3.6.4         rlang_1.1.5
[25] munsell_0.5.1     withr_3.0.2       yaml_2.3.10       tools_4.4.1
[29] reshape2_1.4.4    dplyr_1.1.4       colorspace_2.1-1  webshot_0.5.5
[33] assertthat_0.2.1  ca_0.71.1         vctrs_0.6.5       TSP_1.2-4
[37] R6_2.6.1          lifecycle_1.0.4   stringr_1.5.1     htmlwidgets_1.6.4
[41] ragg_1.3.3        pkgconfig_2.0.3   dendextend_1.19.0 pillar_1.10.1
[45] gtable_0.3.6      Rcpp_1.0.14       glue_1.8.0        systemfonts_1.2.1
[49] xfun_0.51         tibble_3.2.1      tidyselect_1.2.1  rstudioapi_0.17.1
[53] farver_2.1.2      htmltools_0.5.8.1 rmarkdown_2.29    svglite_2.1.3
[57] labeling_0.4.3    compiler_4.4.1
Back to top
